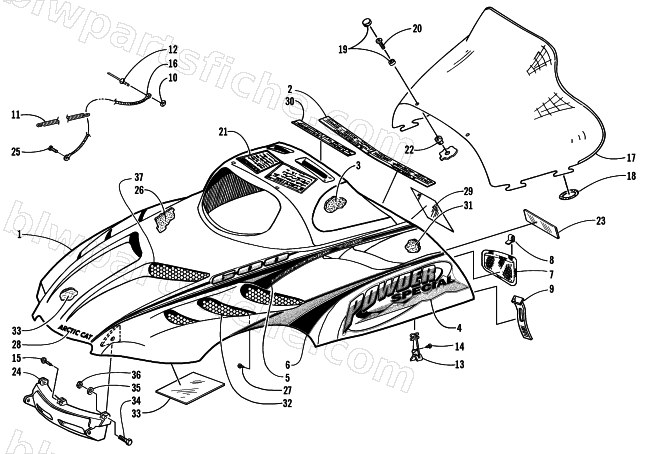

2000 Arctic Cat POWDER SPECIAL 600 EFI LE () — HOOD AND WINDSHIELD ASSEMBLY
2000 POWDER SPECIAL 600 EFI LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-648 | HOOD, W/O DECALS 98ZR/ZL- EFI, LE BLK | 1 | $1,896.95 | |
| 1 | 0718-888 | HOOD, W/ DECAL (P/S 600 CARB/EFI LE/BLK) | 1 | $2,133.95 | |
| 1 | 0718-571 | HOOD- W/O DECAL | 1 | $1,896.95 | |
| 1 | 0718-889 | HOOD, W/ DECAL (P/S 600 CARB/EFI LE/GRN) | 1 | $1,923.95 | |
| 2 | 3611-402 | DECAL,CAUTION-FUEL (ENGLISH & FRENCH) | 1 | $17.95 | |
| 3 | 0717-100 | FOAM,HOOD-UPPER RH | 1 | $5.95 | |
| 3 | 0717-101 | FOAM,HOOD-UPPER LH | 1 | $5.95 | |
| 4 | 3611-692 | DECAL,HOOD SIDE LOWER - RH (BLK) | 1 | $76.95 | |
| 4 | 3611-693 | DECAL,HOOD SIDE LOWER - LH (BLK) | 1 | $75.95 | |
| 4 | 3611-694 | DECAL,HOOD SIDE LOWER - RH (GRN) | 1 | $70.95 | |
| 4 | 3611-695 | DECAL,HOOD SIDE LOWER - LH (GRN) | 1 | $70.95 | |
| 5 | 3611-700 | DECAL,HOOD SIDE UPPER - RH (BLK) | 1 | $90.95 | |
| 5 | 3611-701 | DECAL,HOOD SIDE UPPER - LH (BLK) | 1 | $89.95 | |
| 5 | 3611-702 | DECAL,HOOD SIDE UPPER - RH (GRN) | 1 | $89.95 | |
| 5 | 3611-703 | DECAL,HOOD SIDE UPPER - LH (GRN) | 1 | $89.95 | |
| 6 | 3611-696 | DECAL,HOOD SIDE MIDDLE - RH (BLK) | 1 | $64.95 | |
| 6 | 3611-697 | DECAL,HOOD SIDE MIDDLE - LH (BLK) | 1 | $63.95 | |
| 6 | 3611-698 | DECAL,HOOD SIDE MIDDLE - RH (GRN) | 1 | $59.95 | |
| 6 | 3611-699 | DECAL,HOOD SIDE MIDDLE - LH (GRN) | 1 | $59.95 | |
| 7 | 1606-214 | SCREEN,HOOD-REAR | 1 | $32.95 | |
| 8 | 0123-596 | CLIP,PUSH | 1 | $1.95 | |
| 9 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 10 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 11 | 0123-510 | SPRING,EXTN-HARNESS 4.50 | 1 | $30.95 | |
| 12 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 1606-049 | GUIDE,HOOD | 1 | $3.95 | |
| 14 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 15 | 0623-684 | SCREW,SELF TAP-HWH #12X1-HILO-Z&Y | 1 | $0.95 | |
| 16 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 17 | 0639-763 | WINDSHIELD, XC '98-'99 ZR - SMOKE | 1 | $174.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-121 | SCREW,MACH-PHTRH #10-32X3/4 Z&Y | 1 | $4.82 | |
| 21 | 2611-971 | DECAL,WARNING-GENERAL-HOOD | 1 | $134.95 | |
| 22 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 23 | 2611-769 | DECAL,WARNING-SEATING CAP.-GLOSSY | 1 | $16.95 | |
| 24 | 1606-047 | HINGE,HOOD | 1 | $57.95 | |
| 26 | 0717-102 | FOAM,HOOD-MIDDLE | 1 | $33.95 | |
| 27 | 0623-707 | SCREW,SELF TAP-PHTRH #6 X 1/2" Z&Y | 1 | $0.15 | |
| 28 | 3611-186 | DECAL, HOOD-"ARCTIC CAT"-GRN-CURVED | 1 | $21.95 | |
| 28 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 29 | 2611-970 | DECAL,WARNING-BRAKE/ENGINE | 1 | $30.95 | |
| 30 | 2611-972 | DECAL,CAUTION-ENGINE/BATTERY | 1 | $61.95 | |
| 31 | 0717-110 | FOAM,HOOD-REAR RH | 1 | $5.95 | |
| 31 | 0717-111 | FOAM,HOOD-REAR LH | 1 | $5.95 | |
| 32 | 1606-308 | SCREEN, VENT- HOOD- RH - BLK | 1 | $69.95 | |
| 32 | 1606-309 | SCREEN, VENT- HOOD- LH - BLK | 1 | $62.95 | |
| 33 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 34 | 0623-296 | SCREW,MACH-HWH 10-24X1.0-Z&Y | 1 | $0.35 | |
| 35 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 36 | 0623-392 | NUT,FLEX LOCK 10-24 | 1 | $1.50 | |
| 37 | 1606-318 | SCREEN, VENT- HOOD- CENTER- BLK | 1 | $62.95 |
