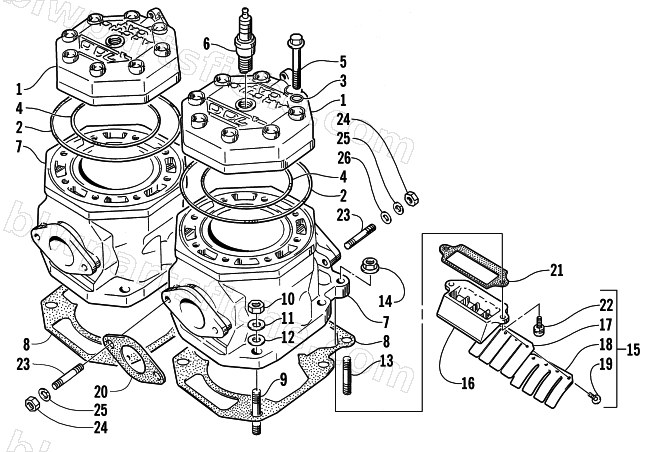

2000 Arctic Cat POWDER SPECIAL 700 LE () — CYLINDER AND HEAD ASSEMBLY
2000 POWDER SPECIAL 700 LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-757 | HEAD,CYLINDER,700 L/C | 1 | $612.95 | |
| 2 | 3003-334 | O RING,HEAD-OUTER | 1 | $26.95 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-335 | O RING,HEAD-INNER | 1 | $33.95 | |
| 5 | 3007-408 | BOLT | 1 | $4.26 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3004-458 | CYLINDER, 700 L/C | 1 | $1,168.95 | |
| 8 | 3003-599 | GASKET,CYL BASE 650/700L/C | 1 | $71.95 | |
| 9 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 10 | 3004-989 | NUT,10MM | 1 | $2.75 | |
| 11 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 12 | 3007-410 | WASHER | 1 | $2.75 | |
| 13 | 3007-520 | BOLT,STUD | 1 | $3.16 | |
| 14 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 15 | 3003-797 | VALVE ASSY,REED | 1 | $249.95 | |
| 17 | 3003-457 | VALVE, REED | 1 | $43.95 | |
| 19 | 3004-422 | SCREW,M3X6 | 1 | $2.95 | |
| 20 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 21 | 3004-134 | GASKET, REED VALVE-NON ASBESTOS | 1 | $13.95 | |
| 22 | 3005-629 | SCREW,6X16 | 1 | $10.97 | |
| 23 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 24 | 3007-416 | NUT | 1 | $2.75 | |
| 25 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 26 | 3423-204 | WASHER | 1 | $1.95 |
