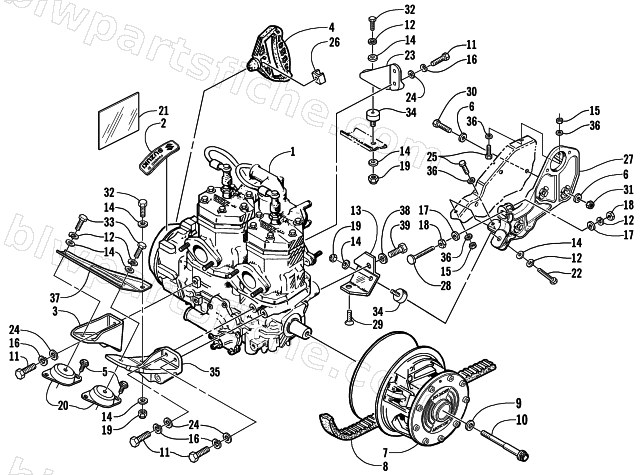

2000 Arctic Cat POWDER SPECIAL 700 LE () — ENGINE AND RELATED PARTS
2000 POWDER SPECIAL 700 LE ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-270 | ENGINE,700 L/C CARB 2000 PWDR | 1 | $3,443.95 | |
| 3 | 0708-066 | BRKT,ENG MTG-RH FRONT-MACH | 1 | $52.95 | |
| 4 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 5 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 6 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 7 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 8 | 0627-020 | BELT,DRIVE-CVT 12.2" CTRS. | 1 | $133.95 | |
| 9 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 10 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 11 | 8002-133 | SCREW,CAP-HH 5/16-18 X1.125 G5 Z&Y | 1 | $0.45 | |
| 12 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 13 | 0608-245 | BRKT,ENG MTG-LH REAR-MACH | 1 | $39.95 | |
| 14 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 15 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 8051-247 | WASHER,SPR LOCK-5/16 .314X.593X.097 Z&Y | 1 | $0.40 | |
| 17 | 8050-282 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.95 | |
| 18 | 8042-516 | NUT,3/8-24 HEX-REG-G5 Z&Y | 1 | $0.40 | |
| 19 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 20 | 0608-349 | MOUNT,ENGINE=(K69 50 DURO) | 1 | $51.95 | |
| 21 | 0706-990 | FOIL 6 X12 (0619-727) | 1 | $16.95 | |
| 23 | 0708-068 | BRKT,ENG MTG-RH REAR-MACH | 1 | $49.95 | |
| 24 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 25 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 26 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 27 | 0708-142 | BRKT,BEARING SUPPORT ASSY | 1 | $122.95 | |
| 28 | 0608-299 | BUMPER,TORQUE-ENGINE (2000) | 1 | $15.95 | |
| 29 | 0623-095 | SCREW,MACH-HSFH 1/2-13X1.00 Z&Y | 1 | $6.47 | |
| 30 | 0623-628 | SCREW,CAP-HH,3/8X16-1 3/8 ZY | 1 | $0.55 | |
| 31 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 32 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 33 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 34 | 0608-217 | MOUNT,ENG-50 DURO,.75 STUD,FULL WASHER | 1 | $26.95 | |
| 35 | 0708-118 | BRKT,ENG MTG-LH FRONT-MACH | 1 | $69.95 | |
| 36 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 37 | 0708-489 | BRKT,ENGINE-CROSS BRACE-PTD BLK | 1 | $53.95 | |
| 38 | 8050-332 | WASHER,FLAT- 1/2 X 1.000 X .063 Z&Y | 1 | $5.09 | |
| 39 | 8002-402 | SCREW,CAP-HH 1/2-13 X1.00 G5 Z&Y | 1 | $1.64 |
