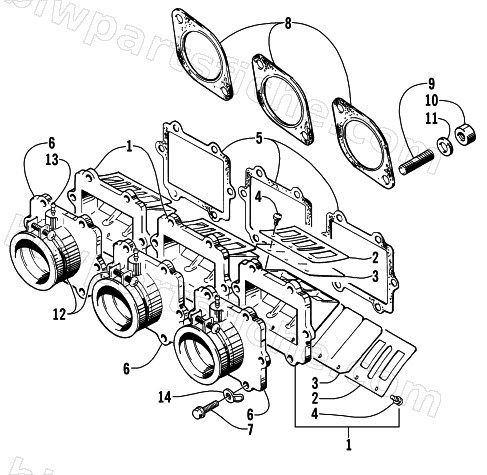

REED VALVE ASSEMBLY
2000 THUNDER
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-124 | VALVE ASSY, REED | 1 | $259.95 | |
| 3 | 3004-177 | VALVE, REED | 1 | $27.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-432 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3005-419 | PIPE, INTAKE | 1 | $197.95 | |
| 7 | 3007-380 | BOLT | 1 | $3.16 | |
| 8 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 9 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 10 | 3007-416 | NUT | 1 | $2.75 | |
| 11 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 12 | 3004-463 | CLAMP,M58 | 1 | $34.95 | |
| 13 | 3003-597 | NOZZLE,INJECTION | 1 | $13.73 | |
| 14 | 1606-599 | TAB,CARB BOOT STRAP | 1 | $2.95 |
