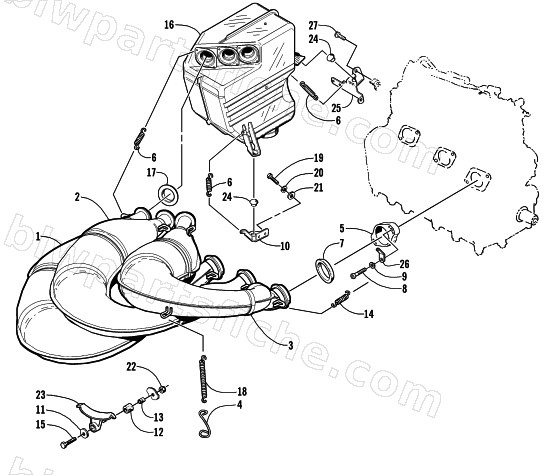

EXHAUST ASSEMBLY
2000 THUNDERCAT MC ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-839 | CHAMBER, EXP-MAG-FAB ('02 1000) | 1 | $833.95 | |
| 2 | 0712-840 | CHAMBER, EXP-CEN-FAB ('02 1000) | 1 | $927.95 | |
| 3 | 0712-841 | CHAMBER, EXP-PTO-FAB ('02 1000) | 1 | $734.95 | |
| 4 | 0712-913 | BRKT,WIREFORM-EXP. CHAMBER-PTD BLK | 1 | $6.47 | |
| 5 | 0612-665 | MANIFOLD,EXHAUST | 1 | $75.95 | |
| 6 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 7 | 0612-667 | GASKET,EXHAUST-HEADER JOINT-2.000 DIA | 1 | $28.95 | |
| 9 | 0623-710 | WASHER,LOCK HI-COLLAR METRIC | 1 | $0.40 | |
| 10 | 0612-963 | BRKT,RESONATOR MTG -CHASSIS | 1 | $62.95 | |
| 11 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 12 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 14 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 15 | 8002-045 | SCREW, CAP-HH 1/4-20 X 1.50 G5 Z&Y | 1 | $0.95 | |
| 16 | 0712-350 | RESONATOR,EXHAUST-WELDT (1000) | 1 | $833.95 | |
| 17 | 0612-693 | GASKET,EXHAUST JOINT-RESONATOR | 1 | $29.95 | |
| 18 | 0123-468 | SPRING,EXTENSION | 1 | $25.95 | |
| 19 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 20 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 23 | 0712-372 | BRKT, MTG- EXP CHAMBER-PTD BLK | 1 | $118.95 | |
| 24 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 25 | 0612-962 | BRKT,RESONATOR MTG - DROPCASE | 1 | $125.95 | |
| 26 | 1606-635 | TAB, HOOD CABLE | 1 | $5.78 | |
| 27 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 |
