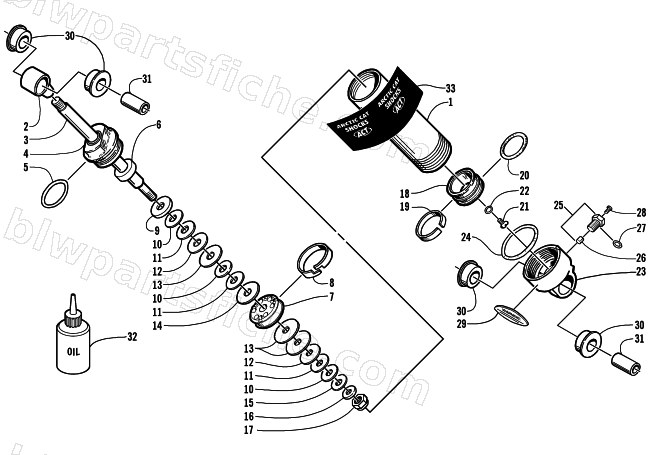

REAR SUSPENSION REAR ARM SHOCK ABSORBER

2000 THUNDERCAT THC

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
0	0704-469	SHOCK, REAR ARM-ASSY (MELONITE)	1	$578.95
1	1604-544	BODY, SHOCK-1.625X7.330 (MELONITE)	1	$149.95
2	1603-503	EYELET,SHOCK - 1.000 DIA X 1.137 LGTH	1	$26.95
4	0704-382	END CAP, LONG - ASSY	1	$56.95
5	1604-271	O-RING,OUTER	1	$2.47
6	1604-364	SPACER, SHAFT (.530 ID X .75 OD X .375)	1	$6.95
7	1603-189	PISTON,0.046 ORIFICE	1	$71.95
8	1604-274	STRAP, PISTON - TEFLON	1	$24.77
9	1604-272	WASHER, TOP OUT -1.125 x .094	1	$1.37
10	1603-065	VALVE,SHOCK- .900 DIA X .010	1	$4.13
11	2603-075	VALVE,SHOCK-1.000 DIA X .010	1	$5.95
12	2603-095	VALVE,SHOCK-1.100 DIA X .010	1	$5.95
13	2603-125	VALVE,SHOCK-1.250 DIA X .010	1	$5.51
14	1603-132	VALVE,SHOCK-1.300 DIA X .006	1	$4.13
15	1603-055	VALVE,SHOCK- .800 DIA X .010	1	$4.40
16	1604-273	WASHER, BACKUP - .620 x .094	1	$1.95
17	0623-696	NUT, FLEX - 3/8-24 UNF Z&Y	1	$2.95
18	2604-816	PISTON,FLOATING-ASSY	1	$116.95
19	1604-278	STRAP, FLOATING PISTON - TEFLON	1	$24.77
20	1604-277	O-RING, FLOATING PISTON	1	$4.54
21	0623-697	SCREW, MACH - HSFH 10-24X3/8 BLK	1	$0.25
22	0423-182	O-RING,-008 (3/16X5/16X1/16)	1	$1.23
23	1604-294	END CAP, SHOCK - W/LUGS	1	$141.95
24	1604-280	O-RING,END CAP	1	$3.02
25	0704-383	VALVE, PRESSURE - ASSY	1	$14.95
27	1604-284	O-RING, PRESSURE VALVE	1	$1.95
28	0624-433	SCREW, MACH - HSBH 8-32X1/4 SS	1	$0.68
29	3611-007	DECAL,SHOCK-WARNING	1	$12.35
30	1604-262	BUSHING,SHOCK-.125 FLANGE	1	$3.02
31	1604-397	SLEEVE, EYELET - INNER - .950	1	$3.99
32	4639-366	S/M SHOCK OIL-1 QUART	1	$21.95
33	3611-691	DECAL,SHOCK-"ACT"	1	$23.95
