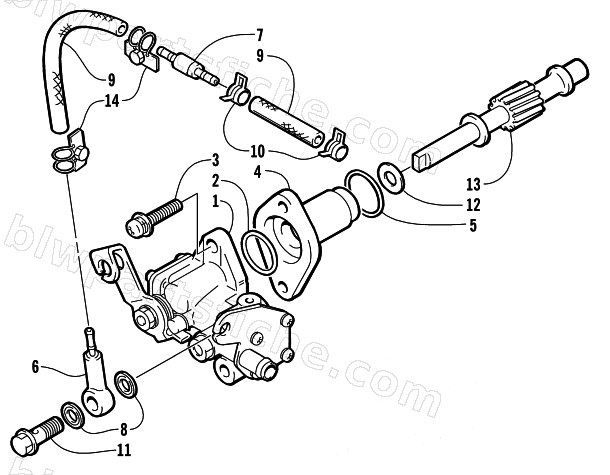

OIL PUMP
2000 THUNDERCAT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-420 | PUMP ASSY, OIL | 1 | $630.95 | |
| 2 | 3008-030 | O RING O:1.5 ID:19.5 | 1 | $3.85 | |
| 3 | 3007-421 | SCREW | 1 | $3.95 | |
| 4 | 3004-763 | RETAINER,OIL PUMP SHAFT | 1 | $133.95 | |
| 5 | 3005-126 | O RING | 1 | $4.26 | |
| 6 | 3005-224 | VALVE, CHECK | 1 | $53.95 | |
| 7 | 3005-621 | CHECK VALVE | 1 | $48.95 | |
| 8 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 9 | 3005-225 | HOSE, OIL,600MM | 1 | $61.95 | |
| 10 | 3008-039 | CLIP, ID:10.5 | 1 | $3.49 | |
| 11 | 3004-346 | BOLT, UNION | 1 | $4.68 | |
| 12 | 3005-049 | SHIM,10MM | 1 | $3.57 | |
| 13 | 3004-179 | GEAR, DRIVEN-OIL PUMP | 1 | $122.95 | |
| 14 | 3003-218 | CLIP, HOSE,M7 | 1 | $4.26 |
