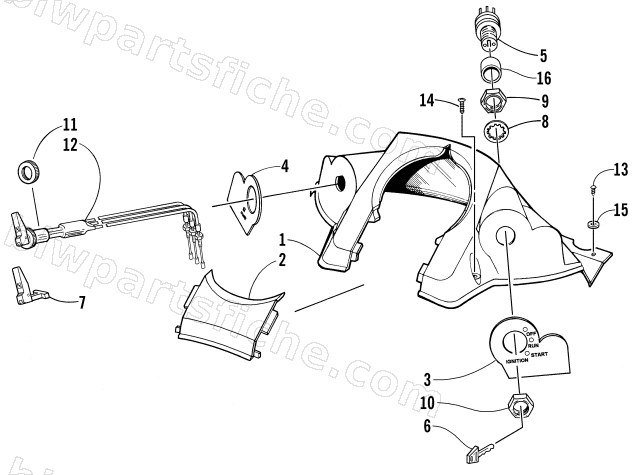

CONSOLE AND SWITCH ASSEMBLY
2000 TRIPLE TOURING 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-735 | CONSOLE-CARB-MULTI KEY | 1 | $154.95 | |
| 2 | 1606-105 | DOOR,CONSOLE | 1 | $19.25 | |
| 4 | 2611-867 | DECAL,CONSOLE-LH (CHOKE) | 1 | $42.95 | |
| 5 | 0609-449 | SWITCH,IGN-MULTI KEY | 1 | $56.95 | |
| 7 | 0638-630 | LEVER KIT,CHOKE | 1 | $17.87 | |
| 8 | 0123-899 | WASHER,IGNITION | 1 | $0.95 | |
| 9 | 0123-900 | NUT,IGNITION | 1 | $1.95 | |
| 10 | 0609-113 | NUT,RETAINING 13/16-20 BLACK PLASTIC | 1 | $1.50 | |
| 11 | 0623-054 | NUT,PLASTIC-CHOKE | 1 | $4.40 | |
| 12 | 0687-115 | CABLE, CHOKE- VM36/38 TRIPLE | 1 | $156.95 | |
| 13 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 14 | 0623-219 | SCREW,TAPPING 10-24X3/4 TYPE F,TYPE 1 CR | 1 | $0.68 | |
| 15 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 |
