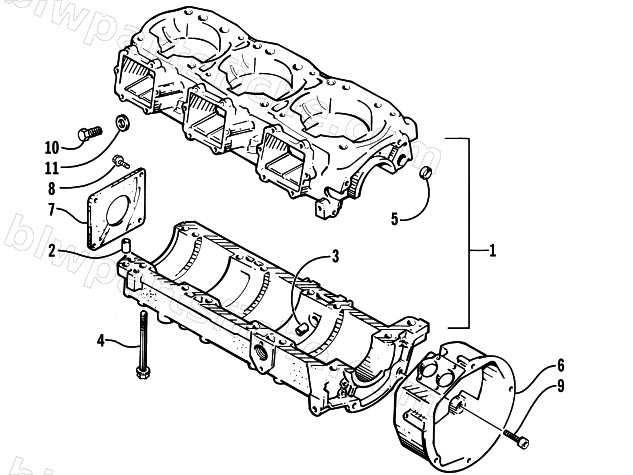

CRANKCASE ASSEMBLY
2000 TRIPLE TOURING 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-905 | CRANKCASE | 1 | $1,288.59 | |
| 2 | 3003-646 | PIN,CRANKCASE,ALINGMENT,11MM | 1 | $4.26 | |
| 3 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 4 | 3004-881 | BOLT, 8X75 | 1 | $6.89 | |
| 5 | 3004-782 | PLUG,20MM | 1 | $11.59 | |
| 6 | 3003-945 | CASE, MAGNETO (W/SENSOR HOLE ) | 1 | $560.95 | |
| 7 | 3004-775 | PLATE,OIL SEAL 440L/C | 1 | $28.95 | |
| 8 | 3007-392 | BOLT | 1 | $3.95 | |
| 9 | 3007-557 | BOLT | 1 | $4.68 | |
| 10 | 3003-399 | PLUG (CYLINDER/CRANK),9MM | 1 | $13.95 | |
| 11 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 |
