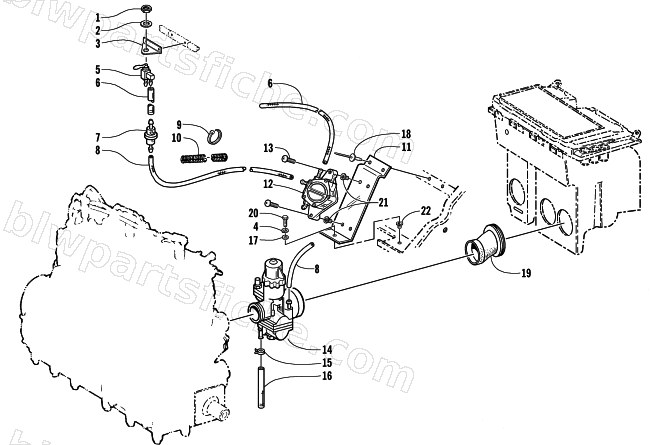

2000 Arctic Cat TRIPLE TOURING 600 () — CARBURETOR AND FUEL PUMP ASSEMBLY
2000 TRIPLE TOURING 600 ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 2 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 3 | 0770-739 | BRKT,MTG-PTD BLK | 1 | $4.29 | |
| 4 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 5 | 0670-945 | VALVE, SHUT-OFF (REVERSE FLOW) | 1 | $48.95 | |
| 6 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 7 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 8 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 8 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 9 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 10 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 11 | 0770-405 | BRACKET, FUEL PUMP MTG-W/INSERTS-ZRT | 1 | $61.95 | |
| 12 | 1670-083 | FUEL PUMP ASSY | 1 | $163.95 | |
| 13 | 0623-833 | SCREW,MACH-PHPNH 10-32X1.00 Z&Y-SEMS | 1 | $1.95 | |
| 14 | 0770-380 | CARB - ASSY, 99 TRPL 600 | 1 | $539.95 | |
| 15 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 16 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 17 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 19 | 1670-353 | BOOT, AIR SILENCER | 1 | $47.95 | |
| 20 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 21 | 0623-779 | INSERT,ALS4-1032-130 | 1 | $3.16 | |
| 22 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 |
