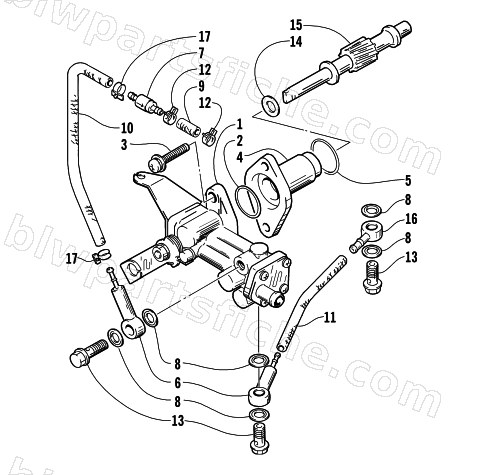

2000 Arctic Cat TRIPLE TOURING 600 () — OIL PUMP
2000 TRIPLE TOURING 600 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-152 | PUMP ASSY, OIL | 1 | $758.95 | |
| 2 | 3008-030 | O RING O:1.5 ID:19.5 | 1 | $3.85 | |
| 3 | 3007-421 | SCREW | 1 | $3.95 | |
| 4 | 3004-804 | RETAINER PUMP,OIL | 1 | $118.95 | |
| 5 | 3005-126 | O RING | 1 | $4.26 | |
| 6 | 3005-224 | VALVE, CHECK | 1 | $53.95 | |
| 7 | 3005-621 | CHECK VALVE | 1 | $48.95 | |
| 8 | 3402-009 | WASHER, DRIVEN, M6.2X11X1.2 | 1 | $2.47 | |
| 9 | 3005-622 | HOSE, OIL (FUEL PUMP SIDE) 600MM | 1 | $30.95 | |
| 10 | 3005-225 | HOSE, OIL,600MM | 1 | $61.95 | |
| 11 | 3005-357 | HOSE, M2.5X7X600 | 1 | $24.77 | |
| 12 | 3008-039 | CLIP, ID:10.5 | 1 | $3.49 | |
| 13 | 3004-346 | BOLT, UNION | 1 | $4.68 | |
| 14 | 3005-049 | SHIM,10MM | 1 | $3.57 | |
| 15 | 3005-319 | GEAR, OIL PUMP DRIVEN | 1 | $127.95 | |
| 16 | 3003-661 | UNION,M2 | 1 | $13.95 | |
| 17 | 3003-218 | CLIP, HOSE,M7 | 1 | $4.26 |
