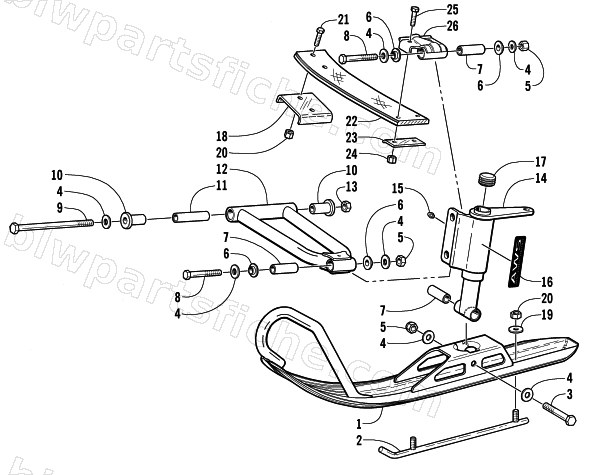

2000 Arctic Cat Z 120 — FRONT SUSPENSION AND SKI ASSEMBLY
2000 Z 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-692 | SKI WELD'T - Z120 | 1 | $139.95 | |
| 2 | 0703-698 | SKAG-PTD BLK | 1 | $19.25 | |
| 3 | 8002-230 | SCREW,CAP-HH 3/8-16 X2.75 G5 Z&Y | 1 | $1.23 | |
| 4 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 5 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 6 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 7 | 1603-365 | AXLE, SUSPENSION | 1 | $4.26 | |
| 9 | 0623-240 | SCREW,CAP 3/8-16X6.6 GD8 | 1 | $9.95 | |
| 10 | 0603-861 | AXLE,PWD METAL-BELL CRANK (NO BEARING) | 1 | $5.95 | |
| 11 | 1603-394 | AXLE,INNER A-ARM | 1 | $9.59 | |
| 12 | 0703-691 | A-ARM,LOWER-PTD BLK | 1 | $63.95 | |
| 13 | 0623-661 | NUT,CROWNLOCK FLANGE 3/8-16 UNC Z&Y | 1 | $1.23 | |
| 14 | 0703-690 | SPINDLE ASSY-PTD BLK | 1 | $206.95 | |
| 15 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 16 | 3611-677 | DECAL,SPINDLE | 1 | $22.95 | |
| 17 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 18 | 1603-350 | RETAINER,SPRING-X-OVER-INNER | 1 | $7.95 | |
| 19 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 20 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 21 | 8002-132 | SCREW,CAP-HH 5/16-18 X1.00 G5 Z&Y | 1 | $0.95 | |
| 23 | 1603-367 | RETAINER,SPRING-X-OVER-OUTER | 1 | $3.95 | |
| 24 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 26 | 0703-705 | MT,X-OVER SPRING-WELD'T | 1 | $23.95 |
