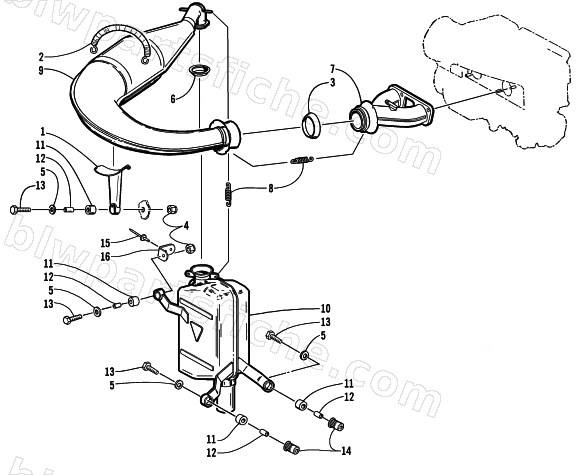

EXHAUST ASSEMBLY
2000 Z 370 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-176 | BRKT,MTG-EXP CHAMBER-PTD BLK | 1 | $27.95 | |
| 2 | 0612-027 | SPRING EXTENSION | 1 | $27.95 | |
| 3 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 4 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 5 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 6 | 0612-188 | GASKET,EXH.-TAIL PIPE | 1 | $32.95 | |
| 7 | 0712-375 | MANIFOLD,EXHAUST-WELDT | 1 | $158.95 | |
| 8 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 9 | 0712-391 | CHAMBER,EXPANSION ('2000 Z) | 1 | $466.95 | |
| 10 | 0712-259 | RESONATOR,EXHAUST-WELDT ('98 440 Z) | 1 | $538.95 | |
| 11 | 0612-107 | BUSHING,RESONATOR MTG | 1 | $12.95 | |
| 13 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 14 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 15 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 16 | 0612-790 | BRKT,MTG-RESONATOR | 1 | $6.95 |
