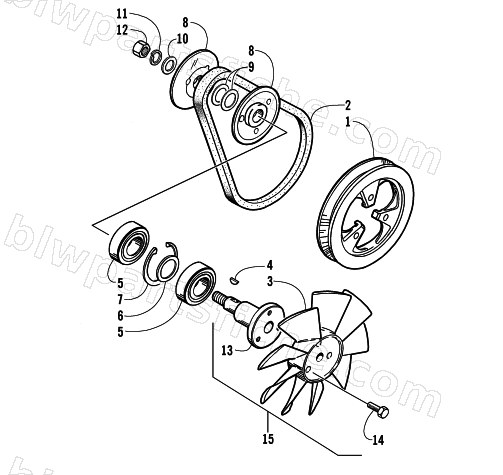

COOLING FAN
2000 Z 440 ES
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-013 | PULLEY, COOLING FAN DRIVE | 1 | $69.95 | |
| 1 | 3005-702 | PULLEY,COOLING FAN DRIVE | 1 | $46.95 | |
| 2 | 3002-156 | BELT,COOLING FAN | 1 | $51.95 | |
| 2 | 3002-854 | BELT,COOLING FAN | 1 | $53.95 | |
| 3 | 3003-008 | FAN, COOLING | 1 | $91.95 | |
| 4 | 3000-266 | KEY(FASTENER) | 1 | $3.30 | |
| 5 | 3002-750 | BEARING,BALL,M20X42X12 | 1 | $41.95 | |
| 6 | 3005-374 | SPACER (20X30X2.0) | 1 | $4.68 | |
| 7 | 3004-479 | CIRCLIP,FASTENER | 1 | $3.95 | |
| 8 | 3002-782 | PULLEY DRIVEN | 1 | $30.95 | |
| 9 | 3002-728 | SHIM 16X25X.5 SPG STL(WASHER) | 1 | $3.71 | |
| 10 | 3004-571 | WASHER,10MM | 1 | $3.16 | |
| 11 | 3007-424 | LOCK WASHER | 1 | $4.26 | |
| 12 | 3004-989 | NUT,10MM | 1 | $2.75 | |
| 13 | 3003-009 | 003FT, COOLING FAN | 1 | $220.95 | |
| 14 | 3005-180 | BOLT 6X16 | 1 | $1.92 | |
| 15 | 3003-285 | FAN ASSY,COOLING | 1 | $563.95 |
