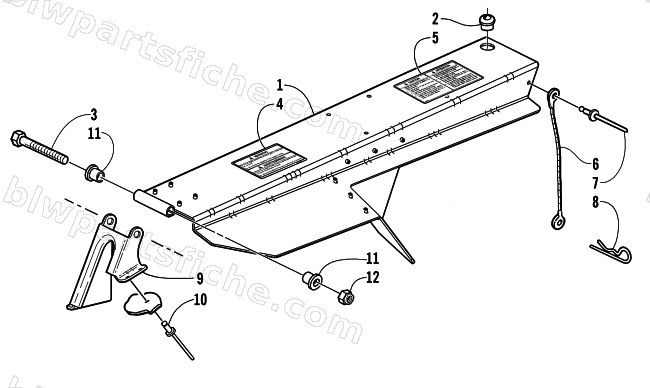

BELT GUARD ASSEMBLY
2000 Z 440 SNO PRO ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-485 | GUARD, ASSY (2001 Z) | 1 | $138.95 | |
| 2 | 0607-097 | GROMMET,GUARD | 1 | $1.92 | |
| 3 | 8002-050 | SCREW,CAP-HH 1/4-20 X2.75 G5 Z&Y | 1 | $2.95 | |
| 4 | 1611-565 | DECAL,WARNING-GUARD | 1 | $1.92 | |
| 5 | 1611-582 | DECAL,CAUTION-JETTING/STORAGE | 1 | $13.73 | |
| 6 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 7 | 8060-426 | RIVET,BLIND-DH AA54 BLK | 1 | $0.12 | |
| 8 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 9 | 0707-707 | BRKT, MTG - GUARD-PTD BLK | 1 | $37.95 | |
| 10 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 11 | 0607-094 | INSERT,HINGE-GUARD | 1 | $0.95 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
