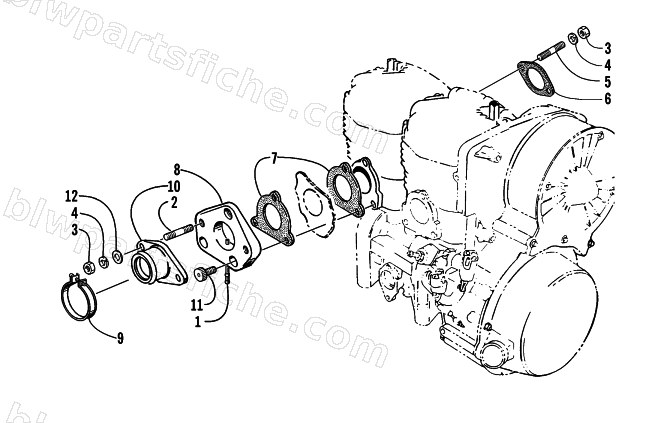

INTAKE ASSEMBLY
2000 Z 440 SNO PRO ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-597 | NOZZLE,INJECTION | 1 | $13.73 | |
| 2 | 3004-577 | BOLT, 8X20 | 1 | $1.92 | |
| 3 | 3007-416 | NUT | 1 | $2.75 | |
| 4 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 5 | 3007-419 | STUD BOLT | 1 | $4.95 | |
| 6 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 7 | 3005-952 | GASKET, INTAKE MANIFOLD | 1 | $19.25 | |
| 8 | 0670-190 | PLATE,ADAPTER-CARB. FLANGE | 1 | $60.95 | |
| 9 | 0109-709 | CLAMP,CARB-FLANGE (32/34 MM) | 1 | $26.95 | |
| 10 | 0115-544 | FLANGE,CARB VM32-454 | 1 | $71.95 | |
| 11 | 3007-674 | BOLT-6X20 | 1 | $3.85 | |
| 12 | 3423-204 | WASHER | 1 | $1.95 |
