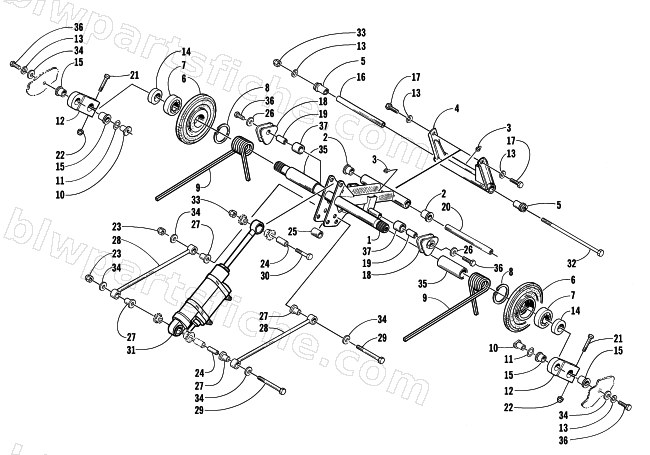

REAR SUSPENSION REAR ARM ASSEMBLY
2000 Z 440 SNO PRO ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0704-517 | ARM,IDLER-FAB BLK(20 PRO) | 1 | $200.95 | |
| 2 | 1604-100 | BUSHING,FLARED-BRONZE (.628 ID) | 1 | $6.75 | |
| 3 | 9916-963 | ZERK,.188 X.094 SHANK (PRESS FIT) | 1 | $3.71 | |
| 4 | 0704-459 | ARM,REAR-FABR(BLK) (99 PRO) | 1 | $58.95 | |
| 5 | 1604-307 | AXLE,SERRATED-REAR ARM (NO BEARING) | 1 | $54.95 | |
| 6 | 0604-374 | WHEEL,IDLER-5.63 W/1 ID | 1 | $53.95 | |
| 7 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 8 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 9 | 0704-890 | SPRING,SUSPENSION-RH-PTD BLK | 1 | $79.95 | |
| 9 | 0704-891 | SPRING,SUSPENSION-LH-PTD BLK | 1 | $79.95 | |
| 11 | 1604-187 | WASHER, OFFSET ARM | 1 | $2.06 | |
| 12 | 0704-348 | OFFSET PIVOT-IDLER,FABR | 1 | $180.95 | |
| 13 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 14 | 1604-127 | COLLAR, IDLER SPACER | 1 | $5.95 | |
| 15 | 1604-202 | BUSHING,FLARED-BRONZE{.750 ID} | 1 | $15.11 | |
| 17 | 8002-223 | SCREW,CAP-HH 3/8-16 X1.125 G5 Z&Y | 1 | $8.21 | |
| 18 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 18 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 19 | 1604-641 | SPACER,SPRING BLOCK | 1 | $3.99 | |
| 20 | 1604-208 | AXLE,ALUM-.625 X 6.817 | 1 | $42.95 | |
| 21 | 8002-138 | SCREW,CAP-HH 5/16-18 X2.25 G5 Z&Y | 1 | $0.95 | |
| 22 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 23 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 24 | 0604-644 | SLEEVE,SHOCK EYELET-REAR-ARM | 1 | $29.95 | |
| 25 | 0604-298 | SPACER,SHOCK LINK-Z&Y | 1 | $33.95 | |
| 26 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 27 | 1604-498 | AXLE,LINK-FLANGED(99 PRO) | 1 | $15.11 | |
| 28 | 0704-361 | LINK,REAR SHOCK-PTD BLK | 1 | $27.95 | |
| 29 | 0623-793 | SCREW,CAP-HH 3/8-16X3.625 GR 5 Z&Y | 1 | $11.95 | |
| 30 | 8002-227 | SCREW,CAP-HH 3/8-16 X2.00 G5 Z&Y | 1 | $1.95 | |
| 31 | 0704-472 | SHOCK,REAR ARM-PIGGY BACK (MELONITE) | 1 | $705.95 | |
| 32 | 0623-782 | SCREW,CAP-HH 3/8-16X10 GR 8 Z&Y | 1 | $13.73 | |
| 33 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 34 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 35 | 0114-254 | SLEEVE,SPRING | 1 | $6.95 | |
| 36 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 37 | 1604-678 | SPACER, SPRING BLOCK | 1 | $3.95 |
