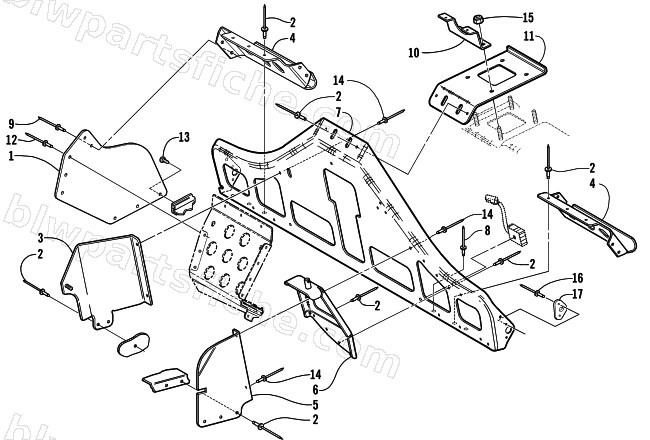

2000 Arctic Cat Z 440 SNO PRO () — STEERING SUPPORT ASSEMBLY
2000 Z 440 SNO PRO ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1606-979 | SUPPORT,ANKLE(20 PRO) | 1 | $24.77 | |
| 2 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 4 | 2706-414 | BRKT,TOE HOLD-RH-PTD BLK | 1 | $56.95 | |
| 4 | 2706-413 | BRKT,TOE HOLD-RH-PTD BLK | 1 | $56.95 | |
| 5 | 2706-117 | BRKT,CLOSE-OFF-PTD BLK (AIRBOX) | 1 | $34.95 | |
| 6 | 1706-111 | BRKT,MTG-GUARD-PTD BLK (20 PRO) | 1 | $61.95 | |
| 7 | 0705-884 | SUPPORT,STEERING-PTD BLK | 1 | $156.95 | |
| 8 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 9 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 10 | 1606-490 | BRKT,MTG-CONSOLE ('98 440 PRO) | 1 | $20.95 | |
| 11 | 1606-428 | BRKT,GAS TANK SUPPORT-UPPER ('98 440 PRO | 1 | $26.95 | |
| 12 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 13 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 14 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 15 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 16 | 8060-510 | RIVET,BLIND-DH SS58 BLK | 1 | $0.68 | |
| 17 | 1606-977 | SPACER,BELLYPAN-LH | 1 | $4.95 |
