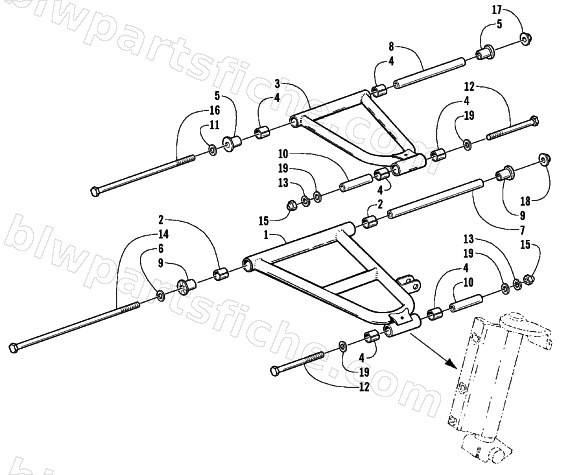

A-ARM ASSEMBLY
2000 ZL 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-532 | ARM,LOWER-FAB.-RH (AWS V-43") | 1 | $161.95 | |
| 1 | 0703-533 | ARM,LOWER-FAB.-LH (AWS V-43") | 1 | $161.95 | |
| 2 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 3 | 0703-535 | ARM,UPPER-FAB. (AWS V-43") | 1 | $142.95 | |
| 4 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 5 | 1603-244 | AXLE,PWD METAL(0603-061) | 1 | $2.06 | |
| 6 | 0623-663 | WASHER,FLAT 1.00X.453X.164 Z&Y | 1 | $3.57 | |
| 7 | 0603-693 | TUBE,AXLE-LOWER PIVOT | 1 | $22.01 | |
| 8 | 0603-692 | TUBE,AXLE-UPPER ARM-PIVOT | 1 | $17.87 | |
| 9 | 0603-524 | AXLE,SERRATED-LOWER ARM PIVOT | 1 | $6.47 | |
| 10 | 0603-830 | AXLE,SPINDLE MTG.-STEEL (2.688") | 1 | $39.95 | |
| 11 | 0623-664 | WASHER,FLAT 1.00X.390X.164 Z&Y | 1 | $1.23 | |
| 12 | 0623-657 | SCREW,CAP HH 3/8-16 X 4.25 GR8 Z&Y | 1 | $1.78 | |
| 13 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 15 | 0623-026 | NUT,FLEX-LOCK3/8-16 UNC | 1 | $9.59 | |
| 16 | 0623-509 | SCREW,CAP-HH 3/8-16X9.455 GD 8 | 1 | $32.95 | |
| 17 | 0623-661 | NUT,CROWNLOCK FLANGE 3/8-16 UNC Z&Y | 1 | $1.23 | |
| 18 | 0623-660 | NUT,CROWNLOCK FLANGE 7/16-14 UNC Z&Y | 1 | $1.95 | |
| 19 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 |
