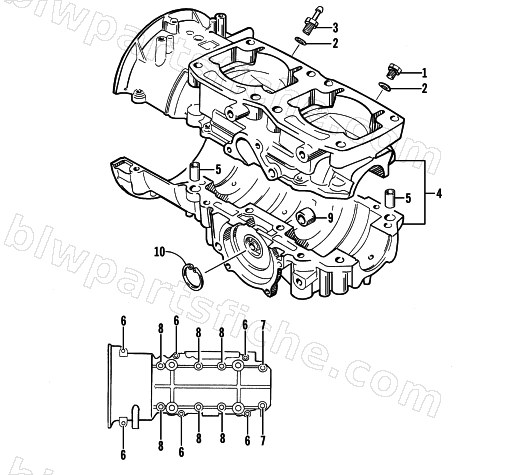

CRANKCASE ASSEMBLY
2000 ZL 440
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3003-399 | PLUG (CYLINDER/CRANK),9MM | 1 | $13.95 | |
| 2 | 3002-276 | GASKET,IMPULSE,10MM | 1 | $3.16 | |
| 3 | 3002-040 | UNION,HOSE M9 | 1 | $10.95 | |
| 4 | 3005-333 | CRANKCASE, 440 L/C LW | 1 | $1,067.95 | |
| 5 | 3003-646 | PIN,CRANKCASE,ALINGMENT,11MM | 1 | $4.26 | |
| 6 | 3007-411 | BOLT | 1 | $3.16 | |
| 7 | 3005-332 | BOLT,8MM | 1 | $4.95 | |
| 8 | 3004-874 | BOLT,8MM | 1 | $13.73 | |
| 9 | 3003-647 | BUSHING,OIL PUMP SHAFT,M10 | 1 | $24.77 | |
| 10 | 3007-714 | CIRCLIP,BEARING FASTENER | 1 | $4.68 |
