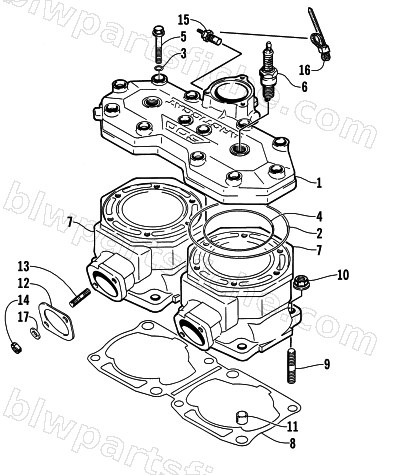

CYLINDER AND HEAD ASSEMBLY
2000 ZL 600
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-489 | HEAD,CYLINDER(600X2) | 1 | $647.95 | |
| 2 | 3003-765 | O RING,HEAD-OUTER | 1 | $22.01 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3004-080 | O-RING,HEAD-INNER | 1 | $32.95 | |
| 5 | 3007-460 | BOLT | 1 | $3.85 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-431 | CYLINDER (600 L/CX2) | 1 | $479.95 | |
| 8 | 3005-654 | GASKET,CYLINDER | 1 | $49.95 | |
| 9 | 3005-596 | STUD,BOLT | 1 | $17.87 | |
| 10 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 11 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 12 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 13 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 14 | 3007-416 | NUT | 1 | $2.75 | |
| 15 | 0720-011 | SENSOR, HEAT- L/C | 1 | $60.95 | |
| 16 | 0623-285 | CABLE TIE,DOUBLE LOOP | 1 | $3.85 | |
| 17 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 |
