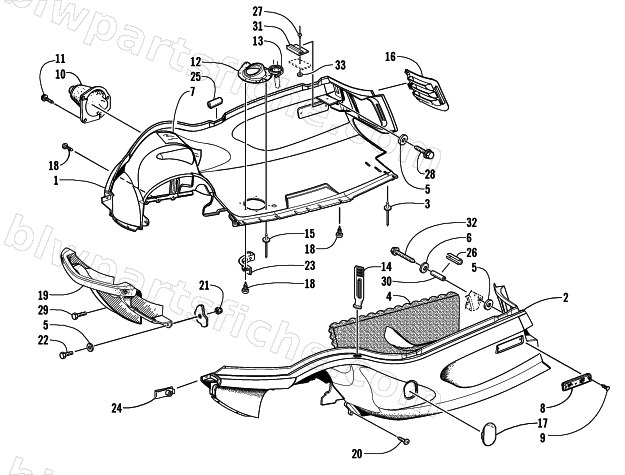

2000 Arctic Cat ZR 440 SNO PRO — BELLY PAN ASSEMBLY
2000 ZR 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1706-132 | BELLY PAN, RH-ROUTED | 1 | $252.95 | |
| 2 | 1706-133 | BELLY PAN, LH-ROUTED (PRO) | 1 | $252.95 | |
| 3 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 4 | 0617-315 | FOAM,BELLYPAN LH | 1 | $33.95 | |
| 5 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 6 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 7 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 8 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 9 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 10 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 11 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 12 | 1612-267 | PLATE,EXHAUST OUTLET | 1 | $31.95 | |
| 13 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 14 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 16 | 1606-044 | LOUVER, AIR INTAKE-RH-BLK | 1 | $46.95 | |
| 16 | 1606-045 | LOUVER, AIR INTAKE-LH-BLK | 1 | $46.95 | |
| 17 | 1606-767 | PANEL, CLUTCH ACCESS-BLK | 1 | $33.95 | |
| 18 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 19 | 2606-224 | BUMPER,FR ROUTED | 1 | $152.95 | |
| 20 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 21 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 8002-039 | SCREW,CAP-HH 1/4-20 X.625 G5 Z&Y | 1 | $0.40 | |
| 23 | 0712-879 | DEFLECTOR,EXHAUST-OUTLET-PTD BLK | 1 | $13.95 | |
| 24 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 25 | 0637-204 | KIT, HOOD,UPDATE | 1 | $17.95 | |
| 26 | 0623-879 | CLIP,RETAINING | 1 | $13.95 | |
| 27 | 8061-428 | RIVET,BLIND-LF AA56 BLACK | 1 | $1.64 | |
| 28 | 0623-647 | SCREW,SELF TAP-HWH 1/4X2.0 A Z&Y | 1 | $0.95 | |
| 29 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 30 | 2606-093 | TUBE,BELLYPAN SPACER | 1 | $6.75 | |
| 31 | 0623-880 | CLIP,RETAINING | 1 | $5.95 | |
| 32 | 0623-878 | SCREW,SELF TAP-HWH 1/4X3.0 A Z&Y | 1 | $1.37 |
