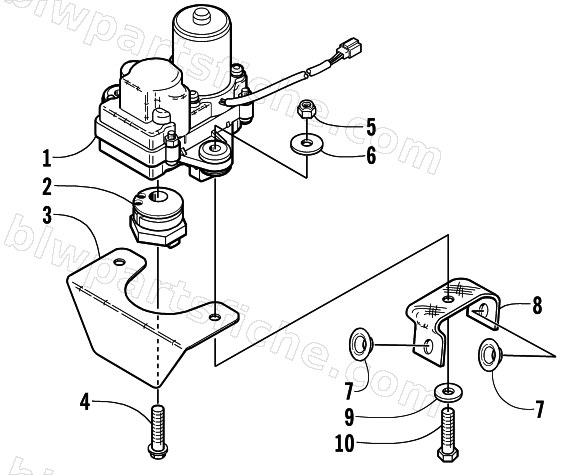

2000 Arctic Cat ZR 440 SNO PRO — SERVOMOTOR ASSEMBLY
2000 ZR 440 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-702 | MOTOR ASSY, EXHAUST VALVE | 1 | $726.95 | |
| 2 | 3005-661 | PULLEY,CONTROLLER | 1 | $70.95 | |
| 3 | 1606-978 | GUARD, HEAT-SERVO | 1 | $14.95 | |
| 4 | 0693-368 | BOLT, GOV SPRING HOOK-M5X12 | 1 | $3.16 | |
| 5 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 7 | 0623-870 | INSERT, STRAP,SERVO MTG | 1 | $23.39 | |
| 8 | 2606-018 | STRAP, MTG,SERVO | 1 | $13.95 | |
| 9 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 10 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 |
