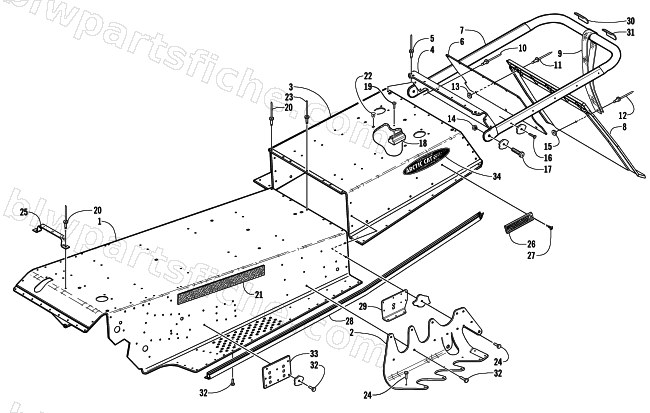

TUNNEL AND REAR BUMPER
2000 ZR 440 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-718 | TUNNEL ASSY-PTD BLK | 1 | $789.95 | |
| 2 | 1706-926 | BRKT,REAR SUSP MTG-RH PTD BLK | 1 | $74.95 | |
| 2 | 1706-927 | BRKT,REAR SUSP MTG-LH PTD BLK | 1 | $74.95 | |
| 3 | 2706-139 | EXTENSION,TUNNEL-PTD BLK | 1 | $333.95 | |
| 4 | 1606-662 | PLATE,END-REAR TUN(99 PRO | 1 | $256.95 | |
| 5 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 6 | 1606-713 | EXTENSION,SNOWFLAP | 1 | $27.95 | |
| 7 | 2706-048 | BUMPER,REAR-PTD BLK | 1 | $316.95 | |
| 8 | 1706-005 | SNOWFLAP,30 DEG.FLIP UP WHITE-MACH | 1 | $53.95 | |
| 9 | 1606-712 | STRAP,SNOWFLAP | 1 | $7.95 | |
| 10 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 11 | 8060-808 | RIVET,BLIND-DH AA86 PL | 1 | $1.37 | |
| 12 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 0623-759 | WASHER,FLAT-.257 X .50 X .060 | 1 | $0.45 | |
| 14 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 15 | 8050-157 | WASHER,FLAT- #10 X .500 X .049 Z&Y | 1 | $1.23 | |
| 16 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 17 | 8017-610 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 1 | $5.92 | |
| 18 | 2606-075 | PROTECTOR, TUNNEL,MACH-CENTER | 1 | $90.95 | |
| 19 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 20 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 21 | 1706-162 | VELCRO,HOOK-1" W/O STRIP-4" | 1 | $3.44 | |
| 23 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 24 | 0623-806 | RIVET, SOLID-.156 X.437-ALUM | 1 | $0.26 | |
| 25 | 0707-710 | BRKT,HOSE HOLDDOWN-PTD BLK | 1 | $17.87 | |
| 26 | 0606-029 | REFLECTOR, RED | 1 | $13.73 | |
| 27 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 28 | 2706-160 | ROLL,TUNNEL-RH-PTD BLK | 1 | $87.95 | |
| 28 | 2706-161 | ROLL,TUNNEL-LH-PTD BLK | 1 | $85.95 | |
| 29 | 2706-124 | PLATE,BACKING-RH-REAR SUSP-PTD BLK | 1 | $10.97 | |
| 29 | 2706-125 | PLATE,BACKING-LH-REAR SUSP-PTD BLK | 1 | $11.95 | |
| 30 | 1611-567 | DECAL,WARNING-TOWING(FRENCH) | 1 | $13.95 | |
| 31 | 1611-566 | DECAL,WARNING-TOWING(ENGLISH) | 1 | $13.73 | |
| 32 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 33 | 2706-116 | PLATE, BODY-REINFORCEMENT-PTD BLK | 1 | $6.75 | |
| 34 | 3611-888 | DECAL, A/C GENUINE LUBRICANTS | 1 | $16.95 |
