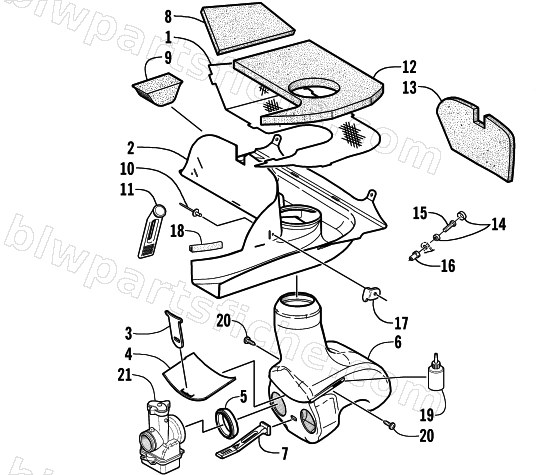

2000 Arctic Cat ZR 440 SNO PRO () — AIR SILENCER ASSEMBLY
2000 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-100 | SCREEN,AIR INTAKE-FORMED | 1 | $69.95 | |
| 2 | 2606-040 | INTAKE,AIR-HOOD ('20 440 PRO) | 1 | $148.95 | |
| 3 | 1670-164 | PLATE, RETAINING,BAFFLE | 1 | $37.95 | |
| 4 | 1670-144 | BAFFLE, AIR SILENCER(20 PRO) | 1 | $15.95 | |
| 5 | 1670-352 | BOOT, AIR SILENCER | 1 | $84.95 | |
| 6 | 0770-469 | SILENCER,AIR-ROUTED (20 PRO) | 1 | $159.95 | |
| 7 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 8 | 0617-395 | FOAM, AIR INTAKE-RH | 1 | $21.95 | |
| 9 | 0617-394 | FOAM, AIR,INTAKE-INSIDE | 1 | $24.95 | |
| 10 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 11 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 12 | 0617-396 | FOAM, AIR INTAKE-LH | 1 | $39.95 | |
| 13 | 0617-402 | FOAM, AIR,INTAKE-BACK | 1 | $29.95 | |
| 14 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 15 | 0623-549 | CLAMP,PIPE COVER-.50 X 30.00 | 1 | $10.95 | |
| 16 | 0123-010 | NUT,EXPANSION 10-32 | 1 | $6.75 | |
| 17 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 18 | 0617-264 | SEAL,HEADLIGHT | 1 | $5.95 | |
| 19 | 1639-834 | R/B 0641-477 | 1 | $66.95 |
