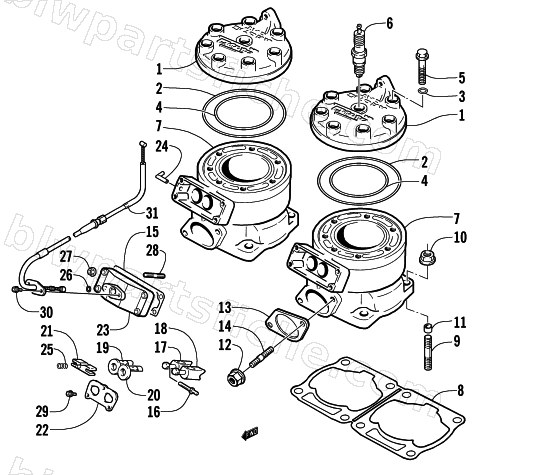

2000 Arctic Cat ZR 440 SNO PRO () — CYLINDER AND HEAD ASSEMBLY
2000 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-280 | HEAD,CYL(440 L/C SNO PRO) | 1 | $451.95 | |
| 2 | 3003-226 | O RING,HEAD-OUTER | 1 | $13.73 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-634 | O RING,440 L/C INNER | 1 | $30.95 | |
| 5 | 3007-460 | BOLT | 1 | $3.85 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-716 | CYLINDER , 440 ZRV | 1 | $1,438.95 | |
| 8 | 3004-952 | GASKET, CYLINDER | 1 | $45.95 | |
| 9 | 3005-207 | STUD BOLT,10MM | 1 | $12.35 | |
| 10 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 11 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 12 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 | |
| 13 | 3003-503 | GASKET,EXHAUST NON-ASBESTOS | 1 | $19.25 | |
| 14 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 15 | 3005-283 | GASKET,CYL.COVER | 1 | $12.35 | |
| 16 | 3005-284 | PIN,EXH.VALVE | 1 | $42.95 | |
| 17 | 3005-717 | VALVE,EXHAUST RH | 1 | $270.95 | |
| 18 | 3005-718 | VALVE,EXHAUST LH | 1 | $299.95 | |
| 19 | 3005-719 | GUIDE, EXHAUST VALVE RH | 1 | $238.95 | |
| 20 | 3005-720 | GUIDE, EXHAUST VALVE LH | 1 | $238.95 | |
| 21 | 3005-655 | STOPPER,EXHAUST VALVE | 1 | $53.95 | |
| 22 | 3005-585 | PLATE, GUIDE | 1 | $16.49 | |
| 23 | 3005-662 | COVER,CYLINDER | 1 | $129.95 | |
| 24 | 2670-203 | FITTING,90 ELBOW-3/16 BARB X .220 ID | 1 | $14.95 | |
| 25 | 3005-736 | SPRING | 1 | $6.34 | |
| 26 | 3005-651 | O RING,D:1.9,ID:5.7 | 1 | $3.95 | |
| 27 | 3007-373 | NUT | 1 | $3.16 | |
| 28 | 0693-905 | STUD BOLT,M6X30 | 1 | $10.97 | |
| 29 | 3007-519 | BOLT,PULSER COIL | 1 | $3.16 | |
| 30 | 3007-433 | BOLT | 1 | $3.16 | |
| 31 | 3005-910 | CABLE, EXHAUST VALVE | 1 | $113.95 |
