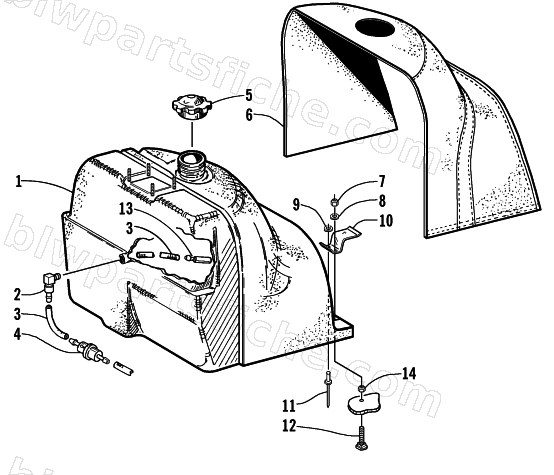

2000 Arctic Cat ZR 440 SNO PRO () — GAS TANK AND COVER
2000 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-401 | TANK , GAS - ASSY - 99 ZR SNO PRO | 1 | $251.95 | |
| 2 | 0670-762 | FITTING,ELBOW-FUEL | 1 | $23.95 | |
| 3 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 3 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 4 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 5 | 0670-871 | CAP,VENTED-GAS/OIL | 1 | $53.95 | |
| 6 | 0716-862 | COVER,GAS TANK ('98 440 PRO) | 1 | $86.95 | |
| 7 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 8 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 9 | 0623-759 | WASHER,FLAT-.257 X .50 X .060 | 1 | $0.45 | |
| 10 | 1606-435 | BRKT,SEAT HOLD-DOWN ('98 440 PRO) | 1 | $12.35 | |
| 11 | 8060-848 | RIVET,BLIND-DH AS86 PL | 1 | $0.95 | |
| 12 | 0623-740 | BOLT,CARRIAGE 1/4-20 X 1.00" GR5 | 1 | $2.95 | |
| 13 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 14 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 |
