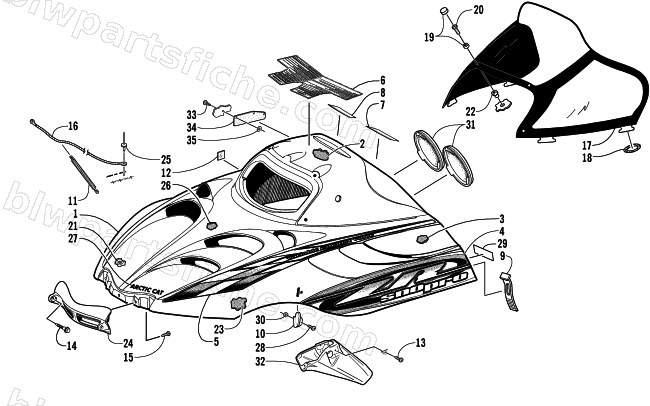

2000 Arctic Cat ZR 440 SNO PRO () — HOOD AND WINDSHIELD ASSEMBLY
2000 ZR 440 SNO PRO ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0718-870 | HOOD,W/O DECAL(PRO) | 1 | $1,056.95 | |
| 1 | 0718-871 | HOOD W/DECALS-00 SNO PRO | 1 | $1,325.95 | |
| 2 | 0617-403 | FOAM, HOOD,REAR | 1 | $61.95 | |
| 3 | 0617-398 | FOAM, HOOD,UPPER RH | 1 | $27.95 | |
| 3 | 0617-399 | FOAM, HOOD,UPPER LH | 1 | $27.95 | |
| 4 | 3611-760 | DECAL,HOOD-LOWER SIDE-RH | 1 | $41.95 | |
| 4 | 3611-761 | DECAL,HOOD-LOWER SIDE-LH | 1 | $41.95 | |
| 5 | 3611-762 | DECAL,HOOD-UPPER SIDE-RH | 1 | $57.95 | |
| 5 | 3611-763 | DECAL,HOOD-UPPER SIDE-LH | 1 | $56.95 | |
| 6 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 7 | 3611-486 | DECAL,CAUTION-ENGINE & BATTERY-ENGLISH | 1 | $12.95 | |
| 8 | 3611-487 | DECAL,CAUTION-ENGINE & BATTERY-FRENCH | 1 | $13.95 | |
| 9 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 10 | 1606-441 | HOLDDOWN,HOOD STRAP-SIDE ('98 440 PRO) | 1 | $13.73 | |
| 10 | 2606-096 | HOLDDOWN,HOOD STRAP-SIDE RH | 1 | $30.95 | |
| 11 | 0623-199 | SPRING,EXTENSION | 1 | $6.47 | |
| 12 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 13 | 0623-789 | SCREW,SELF TAP-HWH #6X1/2 TYP A Z&Y | 1 | $0.25 | |
| 14 | 0623-690 | SCREW,HDHS-1/4-20X1.240 Z&Y | 1 | $24.77 | |
| 15 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 16 | 2606-077 | CABLE, HOOD,29" | 1 | $14.95 | |
| 17 | 1606-996 | WINDSHIELD, FORMED | 1 | $149.95 | |
| 18 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-413 | SCREW,MACH-PHTRH-10-32X 1/2-Z&Y | 1 | $0.25 | |
| 21 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 21 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 22 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 23 | 0617-400 | FOAM,HOOD-REAR RH | 1 | $50.95 | |
| 23 | 0617-401 | FOAM,HOOD-REAR LH | 1 | $50.95 | |
| 24 | 1706-178 | HINGE,HOOD-ROUTED | 1 | $54.95 | |
| 25 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 26 | 0617-328 | FOAM,HOOD-MIDDLE | 1 | $26.95 | |
| 27 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 28 | 8007-430 | SCREW,MACH-CRTH 10-24X.75 G2 BE | 1 | $0.95 | |
| 29 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 30 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 31 | 2606-069 | PLUG, GAUGE HOLE | 1 | $5.37 | |
| 32 | 2606-011 | DUCT,BRAKE-HOOD | 1 | $72.95 | |
| 33 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 34 | 2606-137 | INTAKE, AIR,CLOSEOFF | 1 | $12.35 | |
| 35 | 0623-371 | WASHER,NYLON(ARDEN LWNY-016-9) | 1 | $0.15 |
