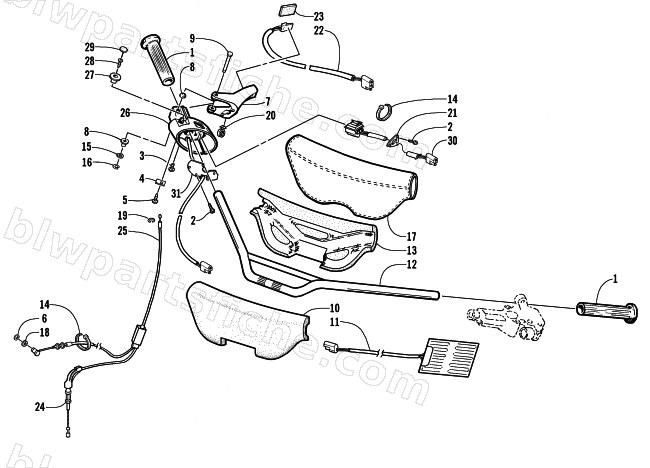

2000 Arctic Cat ZR 600 BLAIR MORGAN SIGNATURE EDITION — HANDLEBAR AND CONTROLS
2000 ZR 600 BLAIR MORGAN SIGNATURE EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 2 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 3 | 0609-085 | SCREW,RETAINING-M6X20 | 1 | $1.50 | |
| 5 | 0609-321 | SCREW, SELF-TAP-PH-3X8 | 1 | $2.95 | |
| 6 | 0124-057 | E-RING | 1 | $1.64 | |
| 7 | 0609-477 | LEVER, TH-35MM SC WHT | 1 | $31.95 | |
| 8 | 0609-038 | SEAL,THROTTLE | 1 | $1.50 | |
| 9 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 11 | 0609-375 | ELEMENT,HANDWARMER-HI/LOW(-553) | 1 | $92.95 | |
| 12 | 1705-008 | HANDLEBAR-PTD BLK | 1 | $77.95 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 16 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 17 | 0705-285 | WRAP,HANDLEBAR-W/EMBOSS | 1 | $32.95 | |
| 18 | 0124-056 | WASHER | 1 | $13.73 | |
| 19 | 0123-231 | RING RETAINING | 1 | $1.37 | |
| 20 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 21 | 0609-378 | PLATE, SWITCH-H/W&T/W RETAINER | 1 | $11.95 | |
| 22 | 0609-373 | ELEMENT, THUMBWARMER-HI/LOW | 1 | $60.95 | |
| 23 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 24 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 25 | 0687-100 | CABLE, THROTTLE-TX36 X3 RACK | 1 | $125.95 | |
| 26 | 0609-386 | CONTROL,TH-NO 2W W/ HI/LO | 1 | $166.95 | |
| 27 | 0609-282 | KNOB,EMER STOP SW-N.O. | 1 | $15.11 | |
| 28 | 0609-612 | SCREW, SELF-TAP PH-3MMX10MM | 1 | $3.16 | |
| 29 | 0609-283 | DECAL,MARK PLATE-N.O. | 1 | $13.95 | |
| 30 | 0609-382 | SWITCH ASSY,HI/LO TW - TH (RH) | 1 | $71.95 | |
| 31 | 0609-316 | COVER, SWITCH-THROTTLE | 1 | $12.95 |
