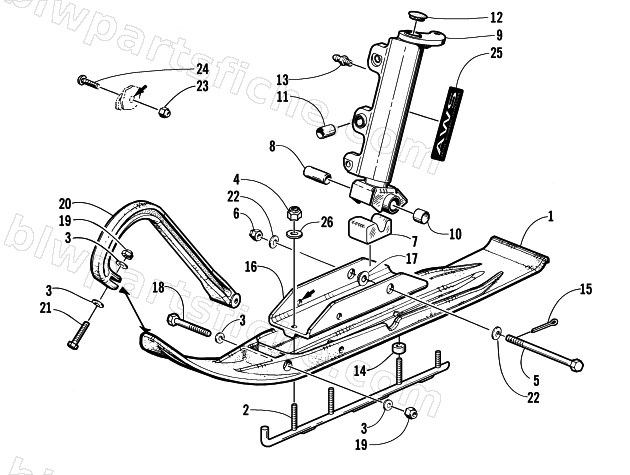

2000 Arctic Cat ZR 600 BLAIR MORGAN SIGNATURE EDITION — SKI AND SPINDLE ASSEMBLY
2000 ZR 600 BLAIR MORGAN SIGNATURE EDITION
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-844 | SKI,PLASTIC-GRN (USE 0703-595 BLACK) | 1 | $227.95 | |
| 1 | 0703-595 | SKI,PLASTIC-MACH (W/ SKAG GROOVE) | 1 | $234.95 | |
| 2 | 0703-706 | SKAG,CARBIDE-WELDMT | 1 | $68.95 | |
| 3 | 8050-247 | WASHER,FLAT- 5/16 X .688 X .065 Z&Y | 1 | $0.68 | |
| 4 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 5 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 6 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 7 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 8 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 9 | 0703-660 | SPINDLE,RH-FAB ('20 ZR) | 1 | $268.95 | |
| 9 | 0703-661 | SPINDLE,LH-FAB (20 ZR) | 1 | $268.95 | |
| 10 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 11 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 12 | 0603-049 | CAP, SPINDLE | 1 | $0.68 | |
| 13 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 14 | 0603-616 | SPACER,SADDLE | 1 | $20.63 | |
| 15 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 16 | 0703-596 | SADDLE, SKI W/INSERTS - ASSY | 1 | $77.95 | |
| 17 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 18 | 8002-143 | SCREW,CAP-HH 5/16-18 X3.50 G5 Z&Y | 1 | $1.64 | |
| 19 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 20 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 20 | 1603-248 | HANDLE, PLASTIC SKI - ZR GREEN | 1 | $46.95 | |
| 21 | 8002-135 | SCREW,CAP-HH 5/16-18 X1.50 G5 Z&Y | 1 | $0.65 | |
| 22 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 23 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 24 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 25 | 3611-764 | DECAL, SPINDLE | 1 | $13.95 | |
| 26 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 |
