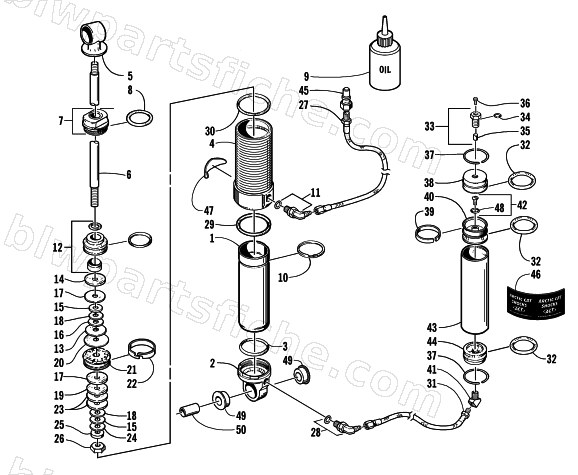

2000 Arctic Cat ZR 600 EFI - LE — REAR SUSPENSION FRONT ARM SHOCK ABSORBER (LE-C)
2000 ZR 600 EFI - LE
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0704-470 | SHOCK, FRONT ARM, EASY-ADJUST(MELONITE) | 1 | $1,386.95 | |
| 0 | 1639-770 | REBUILD KIT,A/C SHOCK (FRT ADJ SHOCK) | 1 | $85.95 | |
| 1 | 1604-546 | BODY,SHOCK-TURNED 1.625X5.590(MELONITE) | 1 | $177.95 | |
| 2 | 1604-524 | END CAP, SHOCK, EASY ADJ. | 1 | $125.95 | |
| 3 | 1604-280 | O-RING,END CAP | 1 | $3.02 | |
| 4 | 1604-517 | ADJUSTER SLEEVE, EASY-ADJ | 1 | $402.95 | |
| 5 | 1604-796 | EYELET, SHOCK - .630 DIA X .950 LGTH | 1 | $28.95 | |
| 6 | 1604-545 | ROD,SHOCK-6.670(MELONITE) | 1 | $127.95 | |
| 7 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 8 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 9 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 10 | 0603-911 | RING,RETAINING-SPIRAL | 1 | $16.49 | |
| 11 | 1604-552 | FITTING,HOSE-MODIFIED-90 DEG X FJIC | 1 | $66.95 | |
| 12 | 0704-476 | PISTON,SEPERATOR-ASSY | 1 | $67.95 | |
| 13 | 1603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $4.82 | |
| 14 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 15 | 1603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $4.40 | |
| 16 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 17 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 18 | 1603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $4.13 | |
| 19 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 20 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 21 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 22 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 23 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 24 | 1603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $4.68 | |
| 25 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 26 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 27 | 1604-530 | HOSE, Q D NIPPLE TO SHOCK, 30IN. | 1 | $128.95 | |
| 28 | 1604-533 | ELBOW,90 DEG-7/16-20X7/16 W/FLARE | 1 | $37.95 | |
| 29 | 1604-529 | O-RING, ADJUSTER, TOP | 1 | $1.64 | |
| 30 | 1604-528 | O-RING, ADJUSTER, BOTTOM | 1 | $1.50 | |
| 31 | 1604-532 | HOSE, RESERVOIR TO SHOCK. 16IN. | 1 | $66.95 | |
| 32 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 33 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 34 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 36 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 37 | 1604-525 | CIRCLIP,RESERVOIR.063 DIA.X 1.42 ID | 1 | $6.95 | |
| 38 | 1604-520 | ENDCAP,EASY ADJ RES-7/16-20 UNF | 1 | $28.95 | |
| 39 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 40 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 41 | 1604-534 | 45DEG. STRAIGHT THREAD ELBOW, FLARE TUBE | 1 | $14.95 | |
| 42 | 0623-697 | SCREW, MACH - HSFH 10-24X3/8 BLK | 1 | $0.25 | |
| 43 | 1604-554 | BODY, RESERVOIR-1.625 X 5.000 (MELONITE) | 1 | $313.95 | |
| 44 | 1604-535 | ENDCAP, RESERVOIR | 1 | $28.95 | |
| 45 | 1604-536 | HYDRAULIC COUPLER, FEMALE THREAD | 1 | $56.95 | |
| 46 | 3611-691 | DECAL,SHOCK-"ACT" | 1 | $23.95 | |
| 47 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 | |
| 48 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 49 | 1604-287 | BUSHING,SHOCK-.160" FLANGE | 1 | $2.88 | |
| 50 | 1604-289 | SLEEVE,EYELET-OUTER-(1.020") | 1 | $13.73 |
