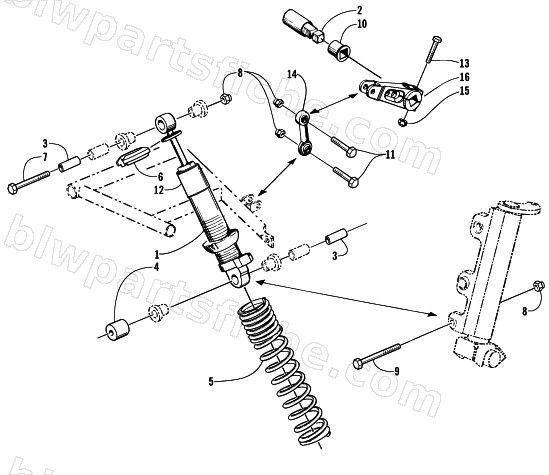

2000 Arctic Cat ZR 600 EFI — SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2000 ZR 600 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-657 | SHOCK,SKI-ACT-IMP. ALUM | 1 | $523.95 | |
| 2 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 3 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 4 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 5 | 1603-392 | SPRING,COMP-FRT-GRN | 1 | $74.95 | |
| 6 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 10 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 11 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 12 | 1603-271 | SLEEVE,WEAR-FRT SHOCK | 1 | $20.95 | |
| 13 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 14 | 1603-002 | LINK,SWAY BAR | 1 | $54.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0603-558 | ARM,SWAYBAR-PTD BLK | 1 | $78.95 |
