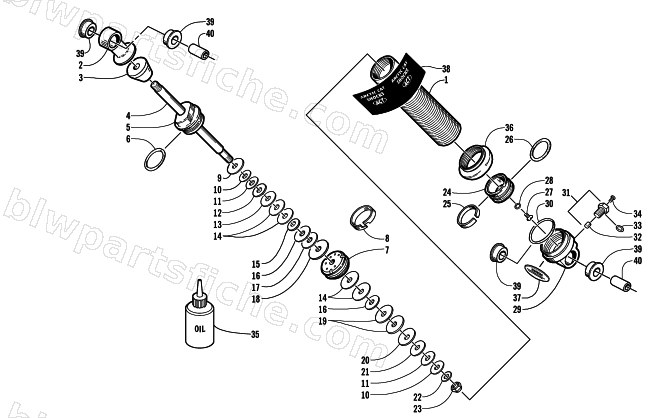

FRONT SUSPENSION SHOCK ABSORBER
2000 ZR 700 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1703-657 | SHOCK,SKI-ACT-IMP. ALUM | 1 | $523.95 | |
| 1 | 1603-308 | BODY,SHOCK-8.900(MELONITE) | 1 | $443.95 | |
| 2 | 0603-910 | EYELET,SHOCK-FR SUSP(FOX ONLY) | 1 | $97.95 | |
| 3 | 0603-991 | BUMPER,STOP | 1 | $16.95 | |
| 4 | 1603-303 | ROD,SHOCK-8.970 (MELONITE) | 1 | $113.95 | |
| 5 | 0704-386 | ENDCAP - ASSY | 1 | $94.95 | |
| 6 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 7 | 0603-953 | PISTON, .093 ORIFICE | 1 | $94.95 | |
| 8 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 9 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 10 | 1603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $4.40 | |
| 11 | 1603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $4.13 | |
| 12 | 2603-074 | VALVE,SHOCK-1.000 DIA X .008 | 1 | $5.95 | |
| 13 | 1603-094 | VALVE,SHOCK-1.100 DIA X .008 | 1 | $5.51 | |
| 14 | 1603-122 | VALVE,SHOCK-1.250 DIA X .006 | 1 | $4.82 | |
| 15 | 2603-044 | VALVE,SHOCK- .700 DIA X .008 | 1 | $5.95 | |
| 16 | 1603-062 | VALVE,SHOCK-.900 DIA X .006 | 1 | $13.73 | |
| 17 | 1603-092 | VALVE,SHOCK-1.100 DIA X .006 | 1 | $7.95 | |
| 18 | 1603-132 | VALVE,SHOCK-1.300 DIA X .006 | 1 | $4.13 | |
| 19 | 2603-124 | VALVE,SHOCK-1.250 DIA X .008 | 1 | $5.95 | |
| 20 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 21 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 22 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 23 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 24 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 25 | 1604-278 | STRAP, FLOATING PISTON - TEFLON | 1 | $24.77 | |
| 26 | 1604-277 | O-RING, FLOATING PISTON | 1 | $4.54 | |
| 27 | 0623-697 | SCREW, MACH - HSFH 10-24X3/8 BLK | 1 | $0.25 | |
| 28 | 0423-182 | O-RING,-008 (3/16X5/16X1/16) | 1 | $1.23 | |
| 29 | 1603-426 | END CAP,SHOCK-NO LUG | 1 | $65.95 | |
| 30 | 1604-280 | O-RING,END CAP | 1 | $3.02 | |
| 31 | 0704-383 | VALVE, PRESSURE - ASSY | 1 | $14.95 | |
| 33 | 1604-284 | O-RING, PRESSURE VALVE | 1 | $1.95 | |
| 34 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 35 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 | |
| 36 | 0603-960 | NUT, SPRING ADJUSTER | 1 | $3.95 | |
| 37 | 3611-007 | DECAL,SHOCK-WARNING | 1 | $12.35 | |
| 38 | 4611-332 | DECAL,SHOCK-2002-ACT-2.3"X5" | 1 | $36.95 | |
| 39 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 40 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 |
