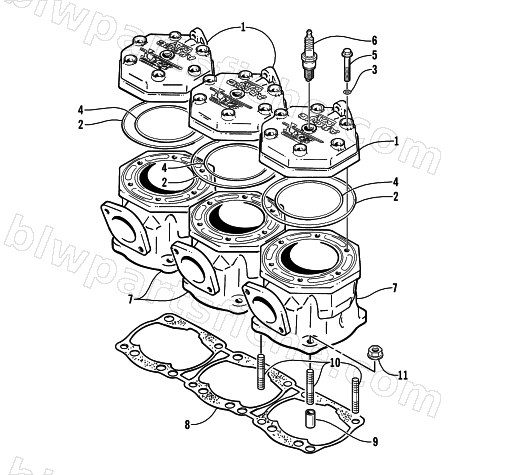

CYLINDER AND HEAD ASSEMBLY
2000 ZRT 600 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3004-771 | HEAD, CYLINDER-600LC | 1 | $335.95 | |
| 2 | 3003-226 | O RING,HEAD-OUTER | 1 | $13.73 | |
| 3 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 4 | 3003-634 | O RING,440 L/C INNER | 1 | $30.95 | |
| 5 | 3007-460 | BOLT | 1 | $3.85 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 7 | 3005-358 | CYLINDER, 600 X3 L/C | 1 | $1,202.95 | |
| 8 | 3005-016 | GASKET, CYLINDER(REPL. 3 OF 3004-813) | 1 | $68.95 | |
| 9 | 3004-822 | PIN,DOWEL(ALIGMENT) | 1 | $3.85 | |
| 10 | 3004-779 | STUD,8MM | 1 | $12.35 | |
| 11 | 3007-390 | NUT,INTER COOLER | 1 | $3.16 |
