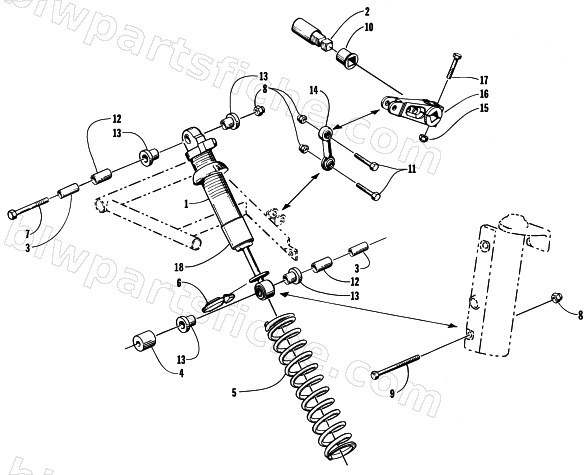

SHOCK ABSORBER AND SWAY BAR ASSEMBLY
2000 ZRT 600 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-657 | SHOCK,SKI-ACT-IMP. ALUM | 1 | $523.95 | |
| 2 | 0703-202 | SWAY BAR, 7/16-PAINTED | 1 | $108.95 | |
| 3 | 3604-594 | AXLE,SHOCK EYELET-10(ID)X20.7 MM | 1 | $4.40 | |
| 4 | 0603-648 | SPACER,SHOCK-MTG | 1 | $15.11 | |
| 5 | 1603-284 | SPRING,COMP/FRT-GRN(2000 ZR) | 1 | $112.95 | |
| 6 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 8002-232 | SCREW,CAP-HH 3/8-16 X3.25 G5 Z&Y | 1 | $2.06 | |
| 10 | 0603-151 | BEARING,SWAY BAR-SQUARE | 1 | $23.39 | |
| 11 | 8002-225 | SCREW,CAP-HH 3/8-16 X1.50 G5 Z&Y | 1 | $0.95 | |
| 12 | 1603-209 | SLEEVE, EYELET - INNER - .790 TLG | 1 | $1.23 | |
| 13 | 0603-955 | BUSHING, SKI SHOCK-.045" LIP | 1 | $9.59 | |
| 14 | 1603-002 | LINK,SWAY BAR | 1 | $54.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0603-558 | ARM,SWAYBAR-PTD BLK | 1 | $78.95 | |
| 17 | 8002-137 | SCREW,CAP-HH 5/16-18 X2.00 G5 Z&Y | 1 | $1.09 | |
| 18 | 1603-271 | SLEEVE,WEAR-FRT SHOCK | 1 | $20.95 |
