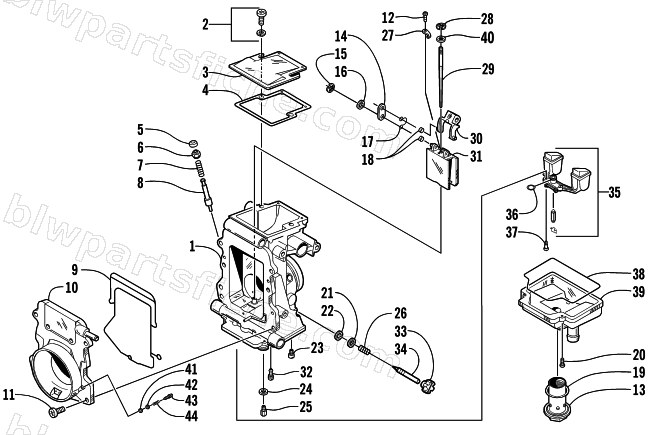

CARBURETOR - INTERNAL PARTS
2000 ZRT 800 ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1670-094 | CARB,TM38-C285 | 1 | $1,791.95 | |
| 2 | 6505-591 | SCREW | 1 | $1.64 | |
| 3 | 6506-142 | CAP, TOP | 1 | $53.95 | |
| 4 | 6506-034 | GASKET | 1 | $32.95 | |
| 5 | 6506-068 | PLUNGER CAP | 1 | $6.75 | |
| 6 | 6506-069 | GUIDE HOLDER | 1 | $20.63 | |
| 7 | 6506-070 | SPRING | 1 | $15.11 | |
| 8 | 6506-071 | PLUNGER ASSEMBLY | 1 | $39.95 | |
| 9 | 6506-209 | O-RING | 1 | $29.95 | |
| 10 | 6506-207 | FUNNEL ASSEMBLY | 1 | $108.95 | |
| 11 | 6505-980 | SCREW | 1 | $1.50 | |
| 12 | 6506-054 | RETAINING PLATE SCREW | 1 | $3.44 | |
| 13 | 6506-032 | DRAIN PLUG | 1 | $43.95 | |
| 14 | 6506-039 | PLATE | 1 | $10.97 | |
| 15 | 6506-051 | E-RING | 1 | $3.99 | |
| 16 | 6506-052 | WASHER | 1 | $2.47 | |
| 17 | 6506-040 | CLIP | 1 | $17.87 | |
| 18 | 6506-053 | RING | 1 | $3.99 | |
| 19 | 6505-185 | O-RING | 1 | $3.99 | |
| 20 | 6506-072 | SCREW | 1 | $1.37 | |
| 21 | 6506-078 | WASHER | 1 | $1.37 | |
| 22 | 6506-080 | WASHER | 1 | $2.06 | |
| 23 | 6506-101 | STARTER JET - 135 | 1 | $10.97 | |
| 24 | 6506-091 | WASHER | 1 | $1.37 | |
| 25 | 6505-071 | JET MAIN 350 | 1 | $6.75 | |
| 26 | 6506-079 | SPRING | 1 | $3.99 | |
| 27 | 6506-055 | PLATE, JET NEEDLE RETAINING | 1 | $7.95 | |
| 28 | 6505-628 | E-RING | 1 | $3.44 | |
| 29 | 6506-221 | JET NEEDLE,9DFH1-56 | 1 | $33.95 | |
| 29 | 6506-200 | NEEDLE, JET 9DFHO2-58 | 1 | $33.95 | |
| 29 | 6506-201 | NEEDLE,JET 9DFH02-59 | 1 | $33.95 | |
| 30 | 6506-043 | LEVER ASSEMBLY | 1 | $108.95 | |
| 30 | 6506-047 | LEVER ASSEMBLY | 1 | $92.95 | |
| 31 | 6506-210 | PISTON VALVE-3.5 | 1 | $139.95 | |
| 32 | 6505-278 | JET PILOT 45 | 1 | $5.09 | |
| 33 | 6506-076 | CAP | 1 | $6.34 | |
| 34 | 6506-145 | ADJUSTER | 1 | $20.63 | |
| 36 | 6505-875 | O-RING | 1 | $1.64 | |
| 37 | 6506-037 | SCREW, FLOAT ARM | 1 | $3.85 | |
| 38 | 6506-038 | O-RING | 1 | $24.77 | |
| 39 | 6506-036 | FLOAT CHAMBER | 1 | $97.95 | |
| 40 | 6505-552 | WASHER,E-RING PACKING | 1 | $1.23 | |
| 41 | 4505-011 | O-RING | 1 | $5.09 | |
| 42 | 6506-218 | WASHER | 1 | $1.37 | |
| 43 | 6506-220 | ADJUSTER | 1 | $17.87 | |
| 44 | 6506-217 | SPRING (C0) | 1 | $3.44 |
