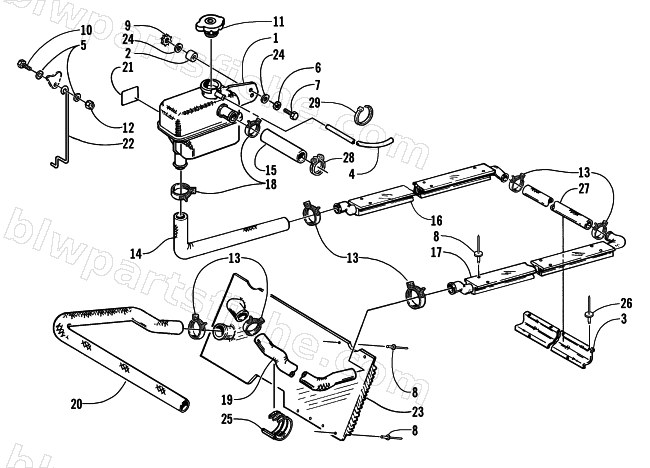

COOLING ASSEMBLY
2001 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0670-494 | TANK,COOLANT-RESERVOIR | 1 | $63.95 | |
| 2 | 0616-878 | SPACER,RESONATOR | 1 | $12.95 | |
| 3 | 0616-930 | GUARD,COOLANT-HOSE-REAR | 1 | $58.95 | |
| 4 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 4 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 5 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 6 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 7 | 8002-044 | SCREW,CAP-HH 1/4-20 X1.25 G5 Z&Y | 1 | $0.68 | |
| 8 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 9 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 10 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 11 | 0606-268 | CAP,MINI RADIATOR-13LBS | 1 | $24.77 | |
| 12 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 0610-296 | HOSE,COOLANT TANK/RH HEAT EXCH. | 1 | $36.95 | |
| 15 | 0610-325 | HOSE,TANK TO ENGINE (TOP) | 1 | $47.95 | |
| 16 | 0716-400 | HEAT,EXCHANGER-WELD,T-RH-REAR | 1 | $292.95 | |
| 17 | 0716-401 | HEAT,EXCHANGER-WELD'T-LH-REAR | 1 | $261.95 | |
| 18 | 0423-070 | CLAMP,HOSE-SPRING(32mm) (USE 1623-321) | 1 | $4.95 | |
| 19 | 0610-223 | HOSE,COOLANT- LH - EXCH FRONT EXCH | 1 | $58.95 | |
| 20 | 0610-328 | HOSE,PUMP TO FRONT EXCHANGER | 1 | $86.95 | |
| 21 | 2611-758 | DECAL,FILL LEVEL-COOLANT TANK | 1 | $11.95 | |
| 22 | 1606-269 | BRKT,WIRE FORM-COOLANT TANK | 1 | $11.95 | |
| 23 | 0716-280 | HEAT,EXCH-FRONT-WELD'T-W/T | 1 | $269.95 | |
| 24 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 25 | 0623-540 | TIE, CABLE-TRIPLE | 1 | $1.78 | |
| 26 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 27 | 0610-228 | HOSE,COOLANT-REAR | 1 | $56.95 | |
| 28 | 0623-424 | CLAMP,HOSE-1.375 DIA HOSE | 1 | $15.11 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
