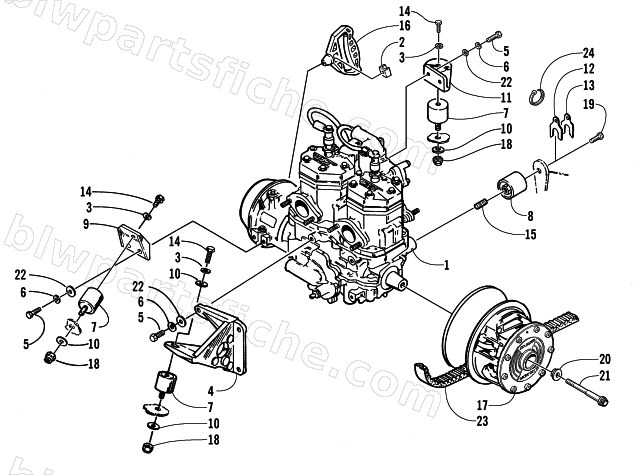

2001 Arctic Cat BEARCAT WIDE TRACK — ENGINE AND RELATED PARTS
2001 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0662-283 | ENGINE,550 LC DUAL CARB2001 | 1 | $5,834.95 | |
| 2 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 3 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 5 | 8013-132 | SCREW,CAP-HH 5/16-18 X 1.00 GR8 Z&Y | 1 | $0.55 | |
| 6 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 7 | 0608-061 | MOUNT,ENGINE | 1 | $36.95 | |
| 8 | 0608-054 | MOUNT,ENGINE-REAR | 1 | $55.95 | |
| 9 | 0608-045 | BRKT,ENG MTG-RH FRONT | 1 | $36.95 | |
| 10 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 12 | 0608-055 | SHIM,ENG MTG-.030 THK CT132 | 1 | $0.85 | |
| 13 | 0608-056 | SHIM,ENG MTG-.060 THK CT116 | 1 | $1.23 | |
| 14 | 8012-222 | SCREW, CAP - HHNLP 3/8-16X1.0 G5 Z&Y | 1 | $1.95 | |
| 16 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 17 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 18 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 19 | 0623-295 | SCREW,CAP-HSBH 1/2-13X3/4 Z&Y | 1 | $9.95 | |
| 20 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 21 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 | |
| 22 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 23 | 0627-014 | BELT,DRIVE 12.2 CD CVT COMP. | 1 | $106.95 | |
| 24 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
