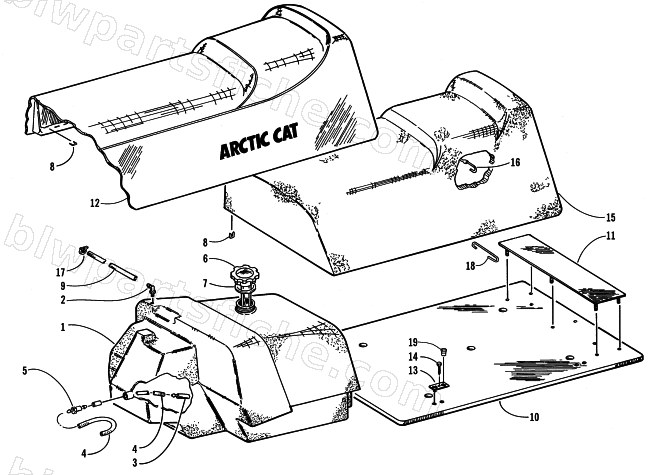

GAS TANK AND SEAT ASSEMBLIES
2001 BEARCAT WIDE TRACK
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-786 | SEAT BASE, WIDE PLASTIC-ASSY | 1 | $996.95 | |
| 1 | 0770-190 | TANK, GAS-ASSY BRC W/T SP | 1 | $372.95 | |
| 2 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 3 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 4 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 4 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 5 | 0670-042 | OUTLET,GAS TANK | 1 | $19.25 | |
| 6 | 0670-135 | CAP,GAS W/GAUGE | 1 | $88.95 | |
| 7 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 8 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 9 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 9 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 10 | 1606-724 | BASE,SEAT - PLASTIC | 1 | $127.95 | |
| 11 | 0716-319 | PLATE,BACKING-BACKREST-WELD'T | 1 | $37.95 | |
| 12 | 0716-586 | COVER, SEAT W/DECAL BRC W/T SP | 1 | $450.95 | |
| 13 | 0716-570 | PLATE,BACKING SEAT HINGE ASSY | 1 | $13.73 | |
| 14 | 0623-301 | SCREW,SELF TAP-HWH 10X1/2 AB Z&Y | 1 | $0.12 | |
| 15 | 0716-606 | FOAM,SEAT W/T | 1 | $315.95 | |
| 16 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 17 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 19 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 |
