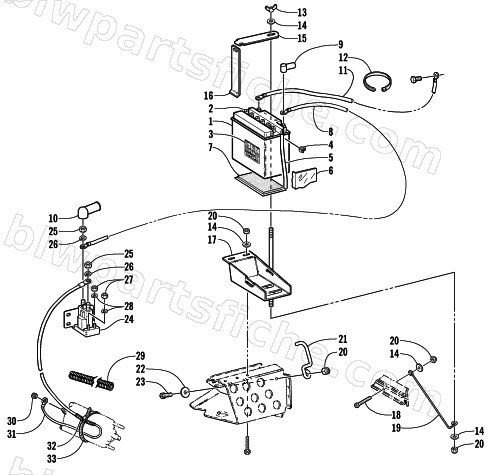

2001 Arctic Cat BEARCAT WIDE TRACK () — ELECTRIC START - BATTERY ASSEMBLY
2001 BEARCAT WIDE TRACK ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-047 | R/B 0745-423 | 1 | $167.95 | |
| 2 | 0645-045 | BATTERY CAP | 1 | $1.92 | |
| 3 | 0645-151 | LABEL, WARNING-BATTERY | 1 | $10.97 | |
| 4 | 0645-152 | CLAMP, HOSE-BATTERY VENT | 1 | $2.47 | |
| 5 | 0645-263 | HOSE, BATTERY VENT-550MM | 1 | $3.44 | |
| 6 | 0645-082 | WRAP,BATTERY HEAT-6 X 11 | 1 | $6.34 | |
| 7 | 0617-042 | FOAM,BATTERY TRAY | 1 | $4.95 | |
| 8 | 0645-142 | CABLE, BATT-SOL 9" | 1 | $54.95 | |
| 9 | 0645-019 | BOOT,TERMINAL-BATTERY | 1 | $4.40 | |
| 10 | 0645-327 | BOOT,TERMINAL-SOLENOID | 1 | $1.64 | |
| 11 | 0645-080 | CABLE,BATT-GRD 30 | 1 | $30.95 | |
| 12 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 13 | 0623-325 | NUT,WING - 1/4-20 NYLON SL | 1 | $2.06 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 15 | 0645-243 | STRAP, BATTERY HOLDOWN-TOP | 1 | $16.49 | |
| 16 | 0645-245 | STRAP, BATTERY HOLDOWN-SIDE | 1 | $33.95 | |
| 17 | 0745-080 | TRAY, BATTERY -WELD'T | 1 | $69.95 | |
| 18 | 0623-597 | SCREW,MACH-HSBH-1/4 20X1-1/4 Z&Y | 1 | $1.64 | |
| 19 | 0645-231 | BRACKET, SUPPORT- BATTERY TRAY | 1 | $27.95 | |
| 20 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 21 | 0645-235 | BRKT,HARNESS-EFI | 1 | $10.95 | |
| 22 | 8050-222 | WASHER,FLAT- 1/4 X .734 X .063 Z&Y | 1 | $0.68 | |
| 23 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 24 | 0645-196 | SOLENOID,ELECTRIC START | 1 | $69.95 | |
| 25 | 8043-452 | NUT,5/16-24 HEX LOCK-MET TOP LOC GRA Z&Y | 1 | $0.95 | |
| 26 | 8051-242 | WASHER,SPR LOCK-5/16 .314X.583X.078 Z&Y | 1 | $1.64 | |
| 27 | 8042-272 | NUT,10-32 HEX-REG-GR2 Z&Y | 1 | $0.15 | |
| 28 | 8051-152 | WASHER,SPR LOCK-#10 .193X.334X.047 Z&Y | 1 | $0.15 | |
| 29 | 0716-391 | CONDUIT, FLEXIBLE-.500 DIA 24" C/T/L | 1 | $3.99 | |
| 30 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 31 | 0645-115 | CABLE,SOLENOID-TO-STARTER [52"] | 1 | $66.95 | |
| 32 | 0645-181 | TUBE,HEAT PROTECTION-4 LONG | 1 | $2.47 | |
| 33 | 0623-144 | TIE,CABLE-17.5 LONG | 1 | $0.54 |
