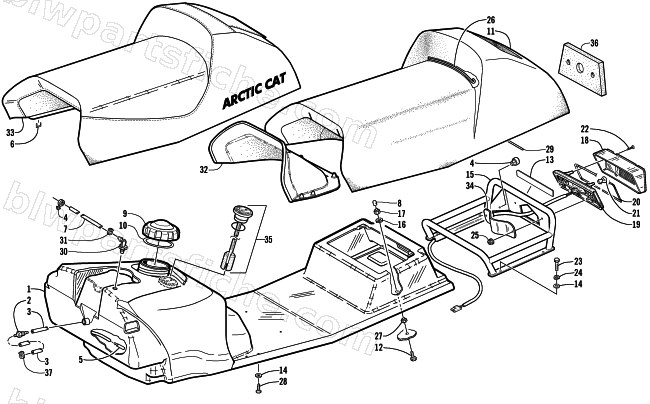

2001 Arctic Cat MOUNTAIN CAT 1000 — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2001 MOUNTAIN CAT 1000
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 0718-977 | SEAT, ASSY '01 M/C 800/1000 | 1 | $795.95 | |
| 1 | 0770-527 | TANK, GAS/SEATB - ASSY | 1 | $394.95 | |
| 2 | 1670-173 | OUTLET, GASTANK,5/16 OUTLET | 1 | $25.95 | |
| 3 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 3 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 4 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 5 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 7 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 9 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 10 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 11 | 1706-197 | FOAM,SEAT(77-82ILD).44@5.7 | 1 | $189.95 | |
| 12 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 13 | 3611-924 | DECAL, WARNING,-MAX LOAD | 1 | $16.95 | |
| 14 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 16 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 17 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 18 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 19 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 20 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 21 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 22 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 23 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 24 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 25 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 26 | 1606-150 | WIRE, SEAT | 1 | $3.02 | |
| 27 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 30 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 31 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 32 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 33 | 1706-272 | COVER, SEAT W/A.C.-MC 500/600 & L/E BL | 1 | $425.95 | |
| 34 | 1606-429 | PLATE,PROTECTOR-TAILLIGHT-PTD BLK | 1 | $17.95 | |
| 35 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 | |
| 36 | 0617-098 | FOAM, SEATBASE-TAIL LIGHT | 1 | $6.95 | |
| 37 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 |
