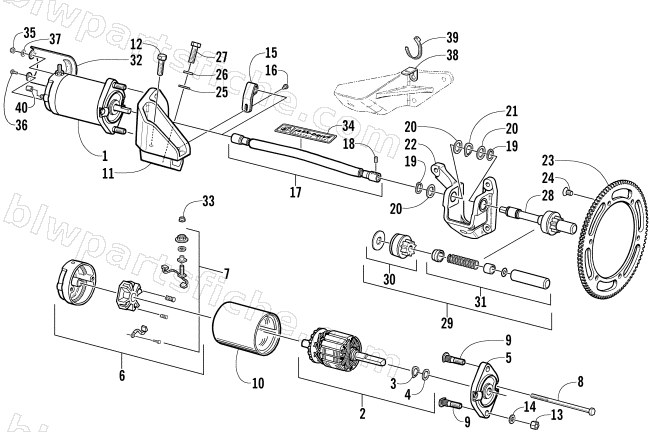

2001 Arctic Cat MOUNTAIN CAT 500 EFI () — FLEX-DRIVE STARTER MOTOR ASSEMBLY (Optional)
2001 MOUNTAIN CAT 500 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-126 | R/B 0745-356 | 1 | $395.95 | |
| 2 | 0645-296 | ARMATURE ASS'Y, "B PAC" FLEX ES | 1 | $378.95 | |
| 3 | 0645-131 | WASHER,WAVE-ELECT START MOTOR | 1 | $3.95 | |
| 4 | 0645-293 | WASHER, THRUST-3/8" ID ES | 1 | $4.26 | |
| 5 | 0645-297 | CAP,DRIVE-"B PAC" FLEX ES W/ZO7 | 1 | $113.95 | |
| 6 | 0645-298 | R/B 0645-313 | 1 | $74.30 | |
| 8 | 0645-299 | BOLT,THROUGH-"B PAC" FLEX ES 1/4-20X4.88 | 1 | $29.95 | |
| 9 | 0623-093 | BOLT, 5/16-18X1 1/2 RIBBED | 1 | $2.47 | |
| 11 | 0708-097 | BRACKET, MTG-FLEX STARTER (MACH) | 1 | $101.95 | |
| 12 | 0623-890 | SCREW, SELF,TAP-HWH 5/16X3/4" TT Z&Y | 1 | $2.75 | |
| 13 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 14 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 15 | 0645-300 | CLIP,RETAINER-ES FLEX SHAFT CASING | 1 | $17.87 | |
| 16 | 0623-914 | SCREW,SELF TAP THD LK-TSPNH 10-24X.375 | 1 | $0.26 | |
| 17 | 0745-169 | SHAFT, FLEX-ES BONDED-13.25 | 1 | $244.95 | |
| 18 | 0623-891 | SCREW,SET-HS LP 10-24 X 1/4 CP BLK (LOCP | 1 | $1.37 | |
| 19 | 0645-256 | SNAP RING,EXTL-17MM DIA | 1 | $3.71 | |
| 20 | 0645-254 | WASHER, THRUST-.68IDX1.00OD (WA3122) | 1 | $19.95 | |
| 21 | 0645-255 | WASHER, WAVE-11/16" | 1 | $3.85 | |
| 22 | 0745-125 | R/B 0745-179 | 1 | $11.85 | |
| 23 | 0645-169 | R/B 0645-329 | 1 | $184.95 | |
| 24 | 0623-441 | R/B 1623-128 | 1 | $0.95 | |
| 25 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 26 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 27 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 | |
| 28 | 0745-150 | R/B 0745-253 | 1 | $98.95 | |
| 29 | 0745-145 | R/B 0745-224 | 1 | $94.95 | |
| 32 | 0745-153 | SHIELD,HEAT-ES ASSEMBLY (STARTER) | 1 | $100.95 | |
| 33 | 0623-122 | NUT ,FLEX LOCK-THIN 1/4-20 | 1 | $1.50 | |
| 34 | 3611-968 | DECAL, FLEX DRIVE | 1 | $23.39 | |
| 35 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 36 | 0623-892 | SCREW,SELF TAP-HWH 1/4-20X1/2 | 1 | $0.95 | |
| 37 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 38 | 2606-281 | R/B 0645-371 | 1 | $3.95 | |
| 39 | 0623-909 | TIE, CABLE - 5/16" X 8-1/2" | 1 | $0.65 |
