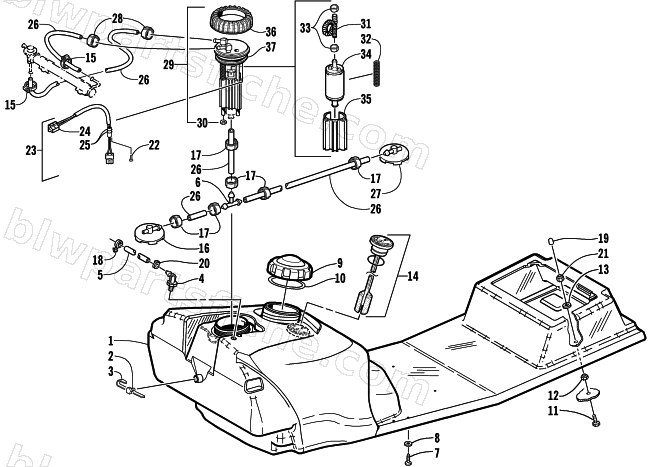

2001 Arctic Cat MOUNTAIN CAT 500 EFI () — GAS TANK AND FUEL PUMP ASSEMBLIES
2001 MOUNTAIN CAT 500 EFI ()
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-558 | TANK/SEATBASE, GAS-ASSY-02 600 EFI | 1 | $401.95 | |
| 2 | 0670-243 | PLUG, GAS TANK-1/4 NPT | 1 | $1.92 | |
| 3 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 4 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 5 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 5 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 6 | 0670-235 | FITTING,TEE-5/16 | 1 | $4.54 | |
| 7 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 10 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 11 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 12 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 14 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 | |
| 15 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 16 | 1670-619 | PICKUP, FUEL-(MP12)SMALL NONVENTED | 1 | $69.95 | |
| 17 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 18 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 20 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 21 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 1670-155 | SCREW, ASSY - #10-32 X .31 | 1 | $1.23 | |
| 23 | 1670-117 | HARNESS, FUEL PUMP-EFI (MASON) | 1 | $244.95 | |
| 24 | 0670-380 | HOUSING, CONNECTOR | 1 | $5.95 | |
| 25 | 0670-381 | O-RING | 1 | $14.95 | |
| 26 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 27 | 1670-618 | PICKUP,FUEL-SMALL/MP-13 VENT | 1 | $93.95 | |
| 28 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 29 | 1670-200 | PUMP,FUEL-EFI-ASSY (PFA-22) | 1 | $629.95 | |
| 30 | 1670-244 | RING, STUD RETAINER - FUEL PUMP | 1 | $1.95 | |
| 32 | 1670-156 | SRING, COMPRESSION - FUEL PUMP | 1 | $4.95 | |
| 33 | 1670-159 | CLAMP, HOSE - FUEL PUMP | 1 | $3.95 | |
| 34 | 1670-153 | PUMP ASSY, FUEL | 1 | $480.95 | |
| 35 | 1670-158 | HOUSING, FUEL PUMP - EXTRUSION | 1 | $32.95 | |
| 36 | 1670-119 | NUT,RETAINING-FUEL PUMP FLANGE | 1 | $12.95 | |
| 37 | 1670-118 | SEAL,FUEL PUMP FLANGE (MASON) | 1 | $20.63 |
