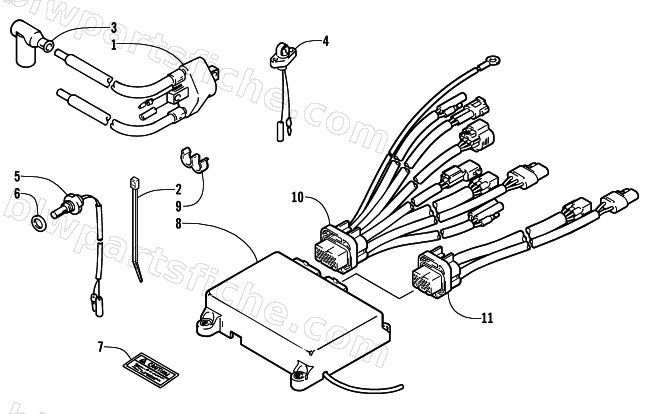

ELECTRICAL
2001 MOUNTAIN CAT 600 EFI LE ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-381 | COIL ASSY, IGNITION | 1 | $244.95 | |
| 2 | 3005-237 | CLAMP,M19 | 1 | $20.63 | |
| 3 | 3006-367 | CAP, SPARK PLUG-NGK TB05EMD | 1 | $24.77 | |
| 4 | 3005-460 | SENSOR, AIR TEMP | 1 | $150.95 | |
| 5 | 3006-515 | SENSOR ASSY,COOLING WATER | 1 | $172.95 | |
| 6 | 3005-233 | WASHER, COOLING WATER SENSOR | 1 | $12.35 | |
| 7 | 2611-755 | DECAL,CAUTION-HOT SURFACE | 1 | $17.95 | |
| 8 | 3005-966 | R/B 3006-445 | 1 | $2,242.95 | |
| 8 | 3006-668 | ECU,'04 600C SQUARE | 1 | $2,721.95 | |
| 8 | 3005-968 | ECU, KEFI 600-TRIANGLE 2002 | 1 | $3,067.95 | |
| 9 | 3005-387 | CLIP | 1 | $4.40 | |
| 10 | 3005-906 | HARNESS, MAIN CONTROLLER | 1 | $277.95 | |
| 11 | 3005-907 | HARNESS, A.P.V. CONTROLLER | 1 | $277.95 |
