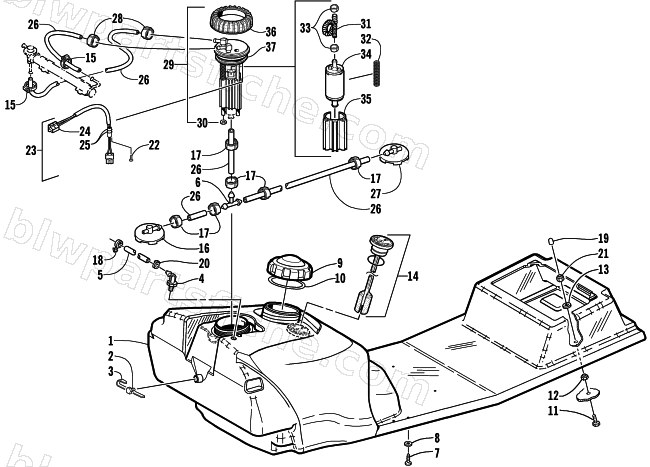

GAS TANK AND FUEL PUMP ASSEMBLIES
2001 MOUNTAIN CAT 600 EFI LE ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-558 | TANK/SEATBASE, GAS-ASSY-02 600 EFI | 1 | $401.95 | |
| 2 | 0670-243 | PLUG, GAS TANK-1/4 NPT | 1 | $1.92 | |
| 3 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 4 | 0670-572 | VENT,GAS TANK | 1 | $3.95 | |
| 5 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 5 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 6 | 0670-235 | FITTING,TEE-5/16 | 1 | $4.54 | |
| 7 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 8 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 9 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 10 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 11 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 12 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 13 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 14 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 | |
| 15 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 16 | 1670-619 | PICKUP, FUEL-(MP12)SMALL NONVENTED | 1 | $69.95 | |
| 17 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 18 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 20 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 21 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 22 | 1670-155 | SCREW, ASSY - #10-32 X .31 | 1 | $1.23 | |
| 23 | 1670-117 | HARNESS, FUEL PUMP-EFI (MASON) | 1 | $244.95 | |
| 24 | 0670-380 | HOUSING, CONNECTOR | 1 | $5.95 | |
| 25 | 0670-381 | O-RING | 1 | $14.95 | |
| 26 | 0610-011 | HOSE,OILLINE 5/16X25' | 1 | $109.95 | |
| 27 | 1670-618 | PICKUP,FUEL-SMALL/MP-13 VENT | 1 | $93.95 | |
| 28 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 29 | 1670-200 | PUMP,FUEL-EFI-ASSY (PFA-22) | 1 | $629.95 | |
| 30 | 1670-244 | RING, STUD RETAINER - FUEL PUMP | 1 | $1.95 | |
| 32 | 1670-156 | SRING, COMPRESSION - FUEL PUMP | 1 | $4.95 | |
| 33 | 1670-159 | CLAMP, HOSE - FUEL PUMP | 1 | $3.95 | |
| 34 | 1670-153 | PUMP ASSY, FUEL | 1 | $480.95 | |
| 35 | 1670-158 | HOUSING, FUEL PUMP - EXTRUSION | 1 | $32.95 | |
| 36 | 1670-119 | NUT,RETAINING-FUEL PUMP FLANGE | 1 | $12.95 | |
| 37 | 1670-118 | SEAL,FUEL PUMP FLANGE (MASON) | 1 | $20.63 |
