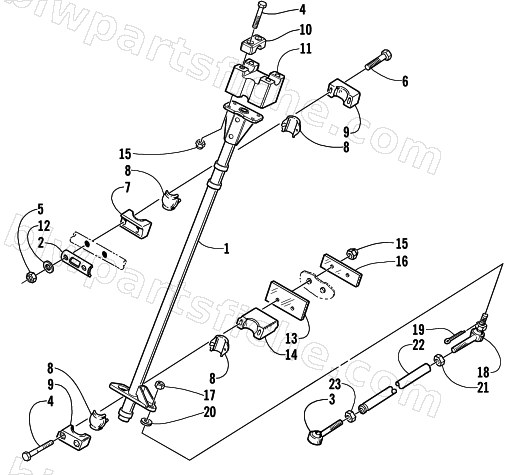

STEERING POST ASSEMBLY
2001 MOUNTAIN CAT 600 EFI LE ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1705-009 | POST,STEERING-PTD BLK | 1 | $125.95 | |
| 2 | 0605-331 | PLATE,BACKING-STRG SUPPORT | 1 | $47.95 | |
| 3 | 0605-202 | ROD END-RH | 1 | $84.95 | |
| 4 | 8002-143 | SCREW,CAP-HH 5/16-18 X3.50 G5 Z&Y | 1 | $1.64 | |
| 5 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 6 | 0623-814 | SCREW,CAP-1/2HH 1/4 - 20 X 3.00 GR 5 Z&Y | 1 | $1.09 | |
| 7 | 0705-064 | HSNG,BEARING-UPPER-PTD BLK | 1 | $19.25 | |
| 8 | 0405-020 | BEARING,STEERING POST | 1 | $2.33 | |
| 9 | 0605-406 | CAP,BEARING-HOUSING - STEERING POST(99PR | 1 | $33.95 | |
| 10 | 0605-506 | CAP,STEERING ADJUSTER | 1 | $13.73 | |
| 11 | 1705-012 | BLOCK,ADJ STEERING-PTD BLK | 1 | $66.95 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 13 | 0605-471 | STOP,STEERING-CHASSIS | 1 | $3.30 | |
| 14 | 0705-335 | HOUSING,BEARING-MACHINED | 1 | $21.95 | |
| 15 | 8040-426 | NUT,HEX LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 16 | 0605-385 | PLATE,BACKING-STEERING (NARROW) | 1 | $6.95 | |
| 17 | 0623-025 | NUT,LOCK3/8-24 NF | 1 | $3.16 | |
| 19 | 0623-175 | PIN,COTTER 3/32 X 1 | 1 | $0.40 | |
| 20 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 21 | 0123-917 | NUT, HEX 3/8-24 LH | 1 | $1.37 | |
| 22 | 0605-404 | TUBE,TIE ROD-.625 X 14.50" (3/8-24) | 1 | $28.95 | |
| 23 | 0623-294 | NUT,HEX-3/8-24 UNF W/CLEAR CHROMATE | 1 | $0.26 |
