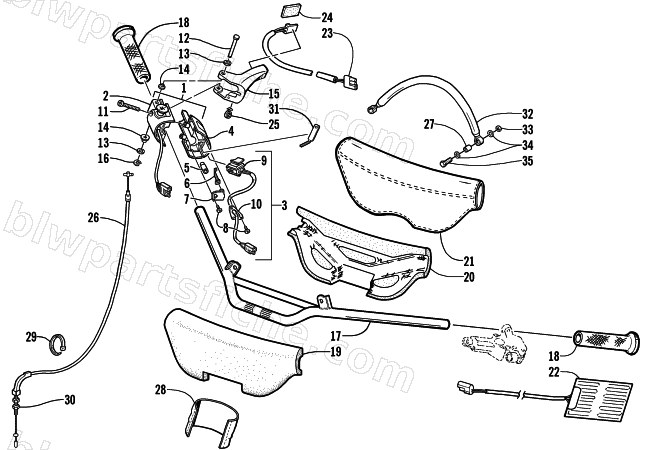

HANDLEBAR AND CONTROLS
2001 MOUNTAIN CAT 600 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-482 | CONTROL,TH-SPLIT 3W W/ HI/LO | 1 | $166.95 | |
| 2 | 0609-493 | CONTROL,TH-STOP SWITCH HALF | 1 | $106.95 | |
| 3 | 0609-500 | CONTROL,TH-HALF ASSY HI/LO | 1 | $124.95 | |
| 4 | 0609-495 | CONTROL,TH-WARMER SW HALF HI/LO | 1 | $40.95 | |
| 5 | 0609-497 | PLUG,RUBBER-IDLE SWITCH | 1 | $14.95 | |
| 6 | 0609-498 | CLIP,RETAINING-TH CABLE | 1 | $16.95 | |
| 7 | 0609-496 | PLATE,RETAINER-IDLE SWITCH | 1 | $14.95 | |
| 8 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 9 | 0609-382 | SWITCH ASSY,HI/LO TW - TH (RH) | 1 | $71.95 | |
| 11 | 0609-492 | SCREW,RETAINING-M5X35 | 1 | $4.95 | |
| 12 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 13 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 14 | 0609-501 | WASHER,SHOULDER-THROTTLE | 1 | $12.35 | |
| 15 | 0609-368 | LEVER, TH-35MM W/O IDLE SWITCH | 1 | $31.95 | |
| 16 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 17 | 1705-010 | HANDLEBAR-PTD BLK | 1 | $77.95 | |
| 18 | 2606-084 | GRIP, HANDLEBAR-5.60" | 1 | $16.49 | |
| 19 | 0605-416 | PAD, MTN HANDLEBAR - FNT - W/HOLES | 1 | $71.95 | |
| 20 | 0605-417 | PAD, MTN HANDLEBAR - REAR - W/HOLES | 1 | $71.95 | |
| 22 | 0609-375 | ELEMENT,HANDWARMER-HI/LOW(-553) | 1 | $92.95 | |
| 23 | 0609-373 | ELEMENT, THUMBWARMER-HI/LOW | 1 | $60.95 | |
| 24 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 25 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 26 | 0687-120 | CABLE,THROTTLE-EFI W/O OIL | 1 | $66.95 | |
| 27 | 0623-811 | SPACER, 3/8 ID-1/2 OD | 1 | $4.82 | |
| 28 | 0705-350 | WRAP, STEERING POST | 1 | $14.95 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 30 | 0623-464 | NUT, LOCKING-THROTTLE CABLE | 1 | $0.26 | |
| 31 | 1639-963 | KIT, THROTTLE CABLE TOOL | 1 | $3.95 | |
| 32 | 0605-448 | STRAP, MTN FORMED - W/NYLON - BLK - PS | 1 | $127.95 | |
| 33 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 34 | 8050-277 | WASHER,FLAT- 3/8 X 1.000 X .063 Z&Y | 1 | $0.26 | |
| 35 | 8002-224 | SCREW,CAP-HH 3/8-16 X1.25 G5 Z&Y | 1 | $1.09 |
