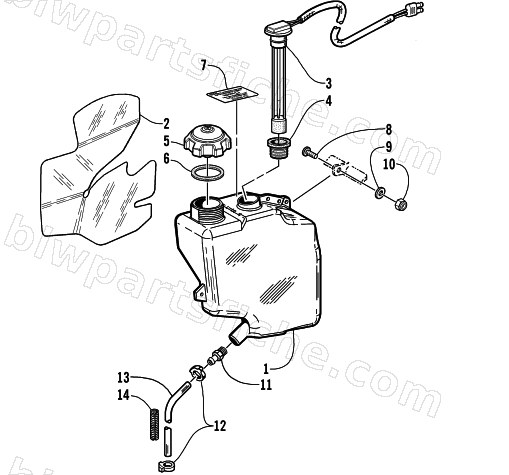

2001 Arctic Cat MOUNTAIN CAT 600 EFI () — OIL TANK ASSEMBLY
2001 MOUNTAIN CAT 600 EFI ()
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-026 | TANK,OIL(2000 ZR) | 1 | $122.95 | |
| 2 | 1670-234 | FOIL, PROTECTIVE-OIL TANK | 1 | $71.95 | |
| 3 | 0609-503 | SENSOR,OIL LEVEL-ROTARY W/SEAL | 1 | $75.95 | |
| 4 | 0609-237 | SEAL,GROMMET-OIL SENSOR (REF 0609-224) | 1 | $3.44 | |
| 5 | 0670-871 | CAP,VENTED-GAS/OIL | 1 | $53.95 | |
| 6 | 0109-733 | SEAL,GAS CAP | 1 | $3.57 | |
| 7 | 4611-224 | DECAL, OIL TANK - VEV | 1 | $15.11 | |
| 8 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 9 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0670-733 | FITTING,STRAIGHT-5/16 X 3/8 NPT | 1 | $5.65 | |
| 12 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 13 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 13 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 14 | 0716-507 | LOOM,HI-TEMP (26" LONG) | 1 | $3.44 |
