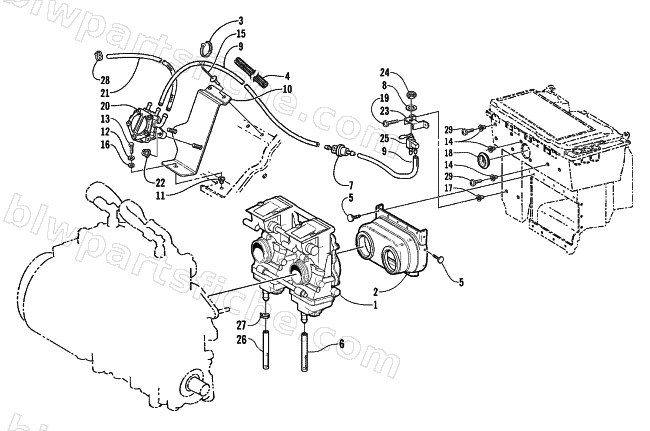

2001 Arctic Cat MOUNTAIN CAT 600 VEV — CARBURETOR AND FUEL PUMP ASSEMBLY
2001 MOUNTAIN CAT 600 VEV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-115 | CARB,TMX38-B308-RACK W/ MAC (2001) | 1 | $1,414.95 | |
| 2 | 1670-375 | BOOT, AIR SILENCER | 1 | $114.95 | |
| 3 | 0123-811 | TIE,CABLE-4 INCH PLT1M | 1 | $0.26 | |
| 4 | 0716-546 | LOOM,PROTECTIVE-6" (0619-342) | 1 | $1.64 | |
| 5 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 6 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 6 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 7 | 0470-988 | FILTER,FUEL-INLINE | 1 | $17.87 | |
| 8 | 0623-288 | WASHER,FLAT-9/16 ID | 1 | $2.95 | |
| 9 | 0610-017 | HOSE,GAS 3/16 X100' | 1 | $232.95 | |
| 9 | 0610-008 | HOSE, GAS LINE-3/16X25' | 1 | $93.95 | |
| 11 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 12 | 8051-217 | WASHER,SPR LOCK-1/4 .252X.489X.077 Z&Y | 1 | $0.35 | |
| 13 | 8002-040 | SCREW,CAP-HH 1/4-20 X.75 G5 Z&Y | 1 | $0.40 | |
| 14 | 0623-627 | INSERT,THREADED-ATS2-420 (.25 X 20).620 | 1 | $3.02 | |
| 15 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 17 | 0623-529 | INSERT,AL SERIES ALS7-1032-225 | 1 | $2.95 | |
| 18 | 0610-331 | HOSE, VACUUM-12.00 LG W/CLAMPS | 1 | $9.59 | |
| 19 | 0623-836 | SCREW,MACH-PHPNH-10-32X1/2 W/SEMS L | 1 | $0.25 | |
| 20 | 1670-064 | PUMP, FUEL (DF62-719) | 1 | $62.95 | |
| 21 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 22 | 0623-877 | NUT, HEX 1/4-20 Z&Y - SEMS | 1 | $0.26 | |
| 23 | 0770-614 | BRKT,MTG-FUEL SHUT OFF-PTD BLK | 1 | $16.95 | |
| 24 | 0623-287 | NUT,JAM-9/16-18 UNF | 1 | $1.95 | |
| 25 | 0670-945 | VALVE, SHUT-OFF (REVERSE FLOW) | 1 | $48.95 | |
| 26 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 27 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 28 | 1670-116 | MANIFOLD, PRESSURE 600 | 1 | $113.95 | |
| 29 | 0610-329 | HOSE, VACUUM-4.92 LG W/CLAMPS | 1 | $2.88 | |
| 29 | 0610-330 | HOSE, VACUUM-9.00 LG W/CLAMPS | 1 | $4.95 | |
| 29 | 0610-352 | HOSE,VACUUM-7.48 LG W/CLAMPS | 1 | $11.95 | |
| 31 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 32 | 1670-109 | COMPENSATOR, PRESSURE (HAC 67) | 1 | $434.95 | |
| 33 | 8007-582 | SCREW,MACH-CRTH 1/4-20X1.0 G2 Z&Y | 1 | $0.59 | |
| 34 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 |
