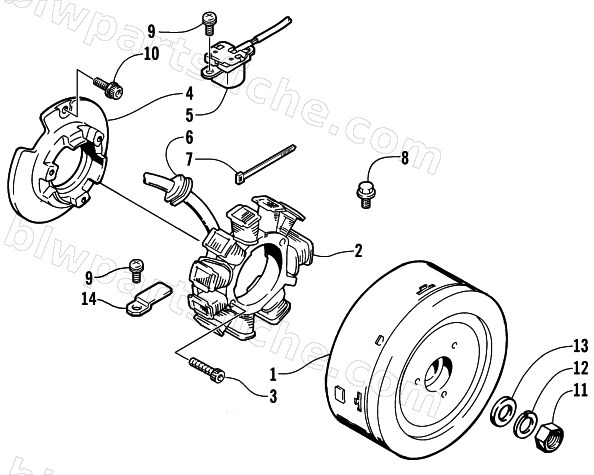

2001 Arctic Cat MOUNTAIN CAT 600 VEV — MAGNETO
2001 MOUNTAIN CAT 600 VEV
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-667 | ROTOR/FLYWHEEL | 1 | $1,146.95 | |
| 2 | 3005-666 | STATOR | 1 | $1,039.59 | |
| 3 | 3007-687 | BOLT,MAG STATOR 6X30 | 1 | $4.68 | |
| 4 | 3005-487 | BASE, STATOR | 1 | $143.95 | |
| 5 | 3004-073 | SENSOR, IGN TIMING | 1 | $238.95 | |
| 6 | 3005-511 | GROMMET,MAGNETO LEAD WIRE | 1 | $18.95 | |
| 7 | 3003-787 | CABLE TIE | 1 | $4.95 | |
| 8 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 9 | 3007-553 | SCREW | 1 | $2.33 | |
| 10 | 3007-449 | BOLT | 1 | $3.16 | |
| 11 | 3007-556 | NUT | 1 | $3.95 | |
| 12 | 3007-427 | LOCK WASHER | 1 | $4.40 | |
| 13 | 3005-175 | WASHER, 14.5X28X5 | 1 | $3.16 | |
| 14 | 3002-317 | CLAMP,M3 | 1 | $2.95 |
